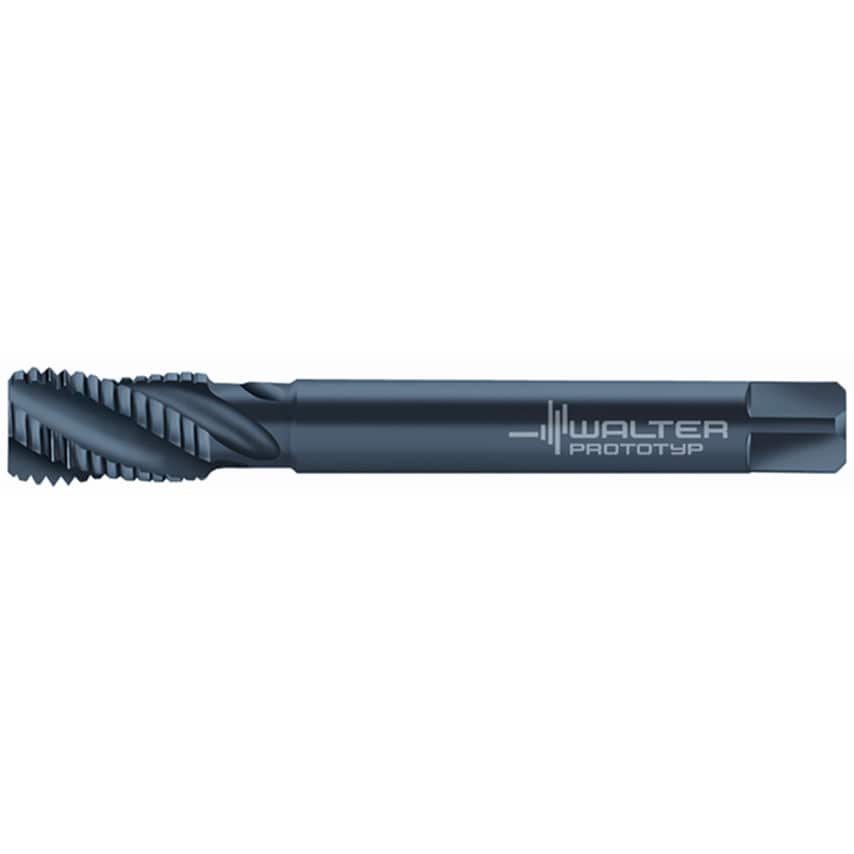

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD MF/6HX DIN 374 right hand flute 40 Suitable for blind hole VAP MF 8x1 P=0.0394in
| ISO Designation | M21563-M8X1 |
| Thread Standard | Metric |
| Pitch | 1mm |
| Clamping Width | 4.9mm |
| Dimensions Standard | DIN 374 |
| Finish/Coating | VAP |
| Thread Size | M8 |
| Cutting Edge Length | 12mm |
| Number of Grooves | 3 |
| Series | Paradur\u00ae X\u00b7pert M |
| Usable Length | 67mm |
| Product Type | Machine Taps |
| Driving Square Length | 8mm |
| Thread Pitch | 1mm |
| Connection Diameter | 6mm |
| ISO Category | M | P |
| MFR Part No. | 6149864 |
| Tap Type | Spiral Flute |
| Material | HSSE |
| Functional Length | 90mm |
| Tool Designation | M21563-M8X1 |
