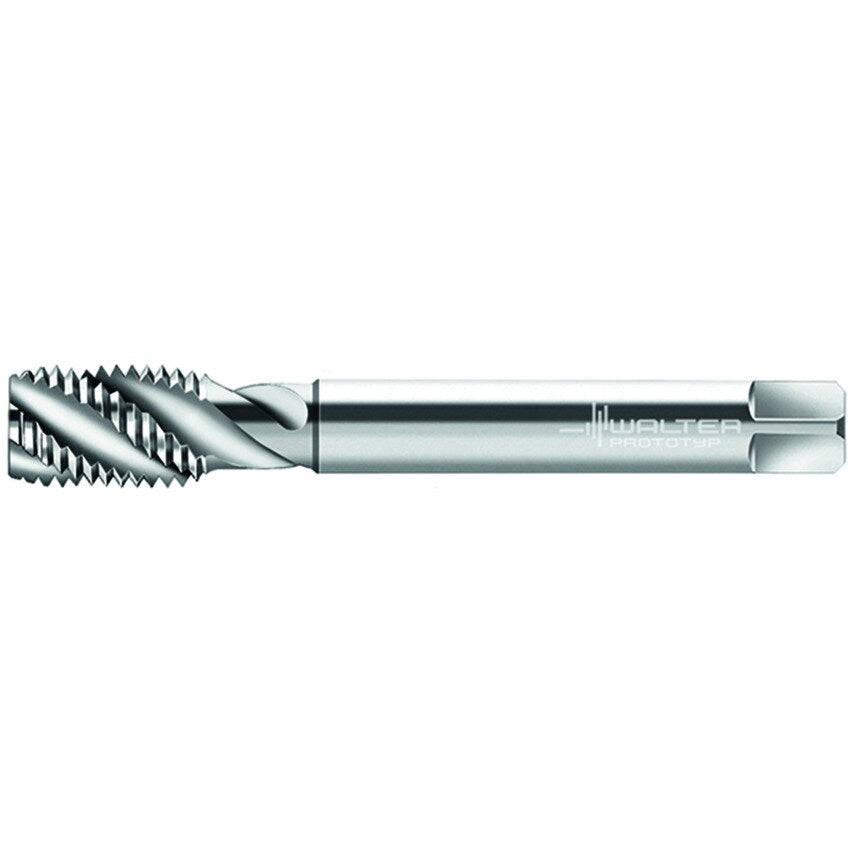

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole G 1/8-28 P=28
| Driving Square Length | 8mm |
| Cutting Edge Length | 12mm |
| Connection Diameter | 7mm |
| Number of Grooves | 3 |
| Thread Size | G 1/8-28 |
| Functional Length | 90mm |
| Tool Designation | P24569-G1/8 |
| Material | HSSE |
| MFR Part No. | 6244785 |
| Usable Length | 67mm |
| Thread Pitch | 28 |
| Threads Per Inch | 28 |
| Clamping Width | 5.5mm |
