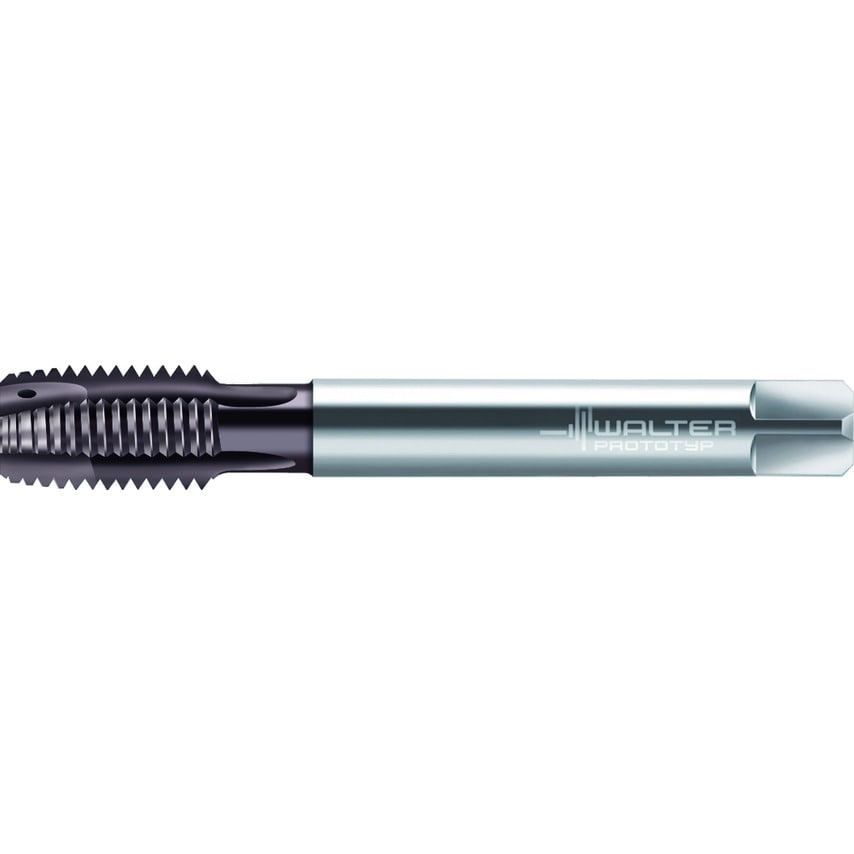

HSS-E PM machine taps Prototex Eco Plus B = 3.5-5xTP (plug chamfer) 3,5xD M/6HX DIN 376 Suitable for through hole THL M 16 P=0.0787in
| Thread Pitch | 2mm |
| MFR Part No. | 6432540 |
| Shank Diameter | 12mm |
| Overall Length | 110mm |
| Cutting Edge Length | 25mm |
| Thread Size | M 16 |
| Usable Length | 68mm |
| Clamping Width | 9mm |
| Driving Square Length | 12mm |
| Tool Designation | EP2026342-M16 |
| Number of Grooves | 4 |
