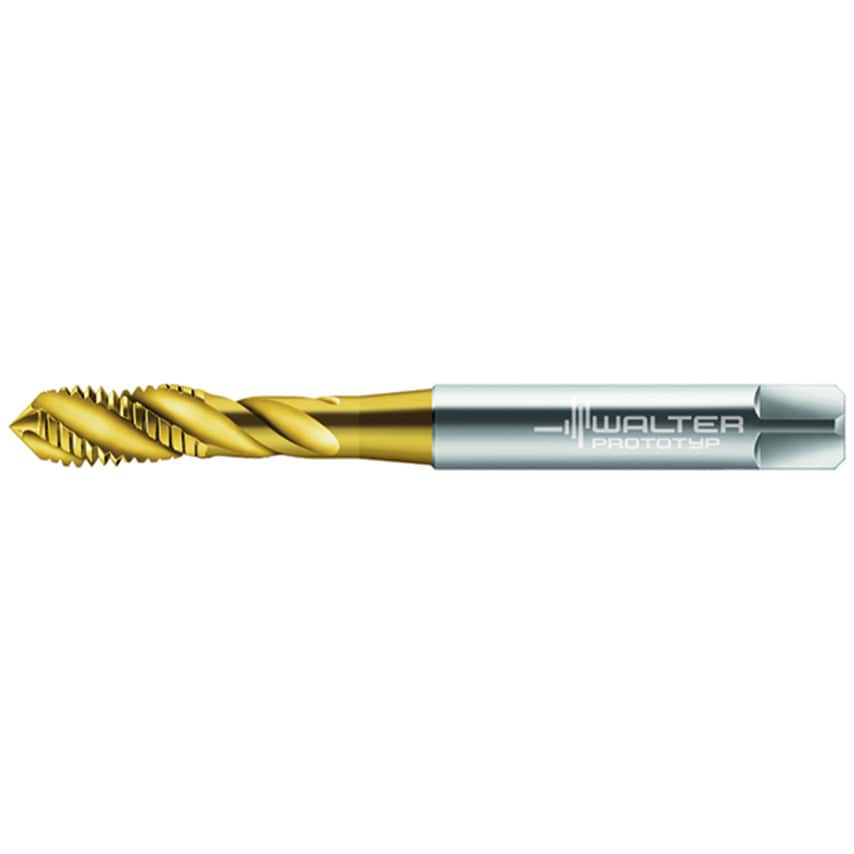

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX ~DIN 371 right hand flute 45 Suitable for blind hole TIN M 2.5 P=0.0177in
| Thread Pitch | 0.45mm |
| Clamping Width | 2.1mm |
| MFR Part No. | 6245574 |
| Tool Designation | EP2051305-M2.5 |
| Driving Square Length | 5mm |
| Thread Size | M 2.5 |
| Functional Length | 50mm |
| Cutting Edge Length | 4mm |
| Connection Diameter | 2.8mm |
| Usable Length | 9.3mm |
| Number of Grooves | 3 |
