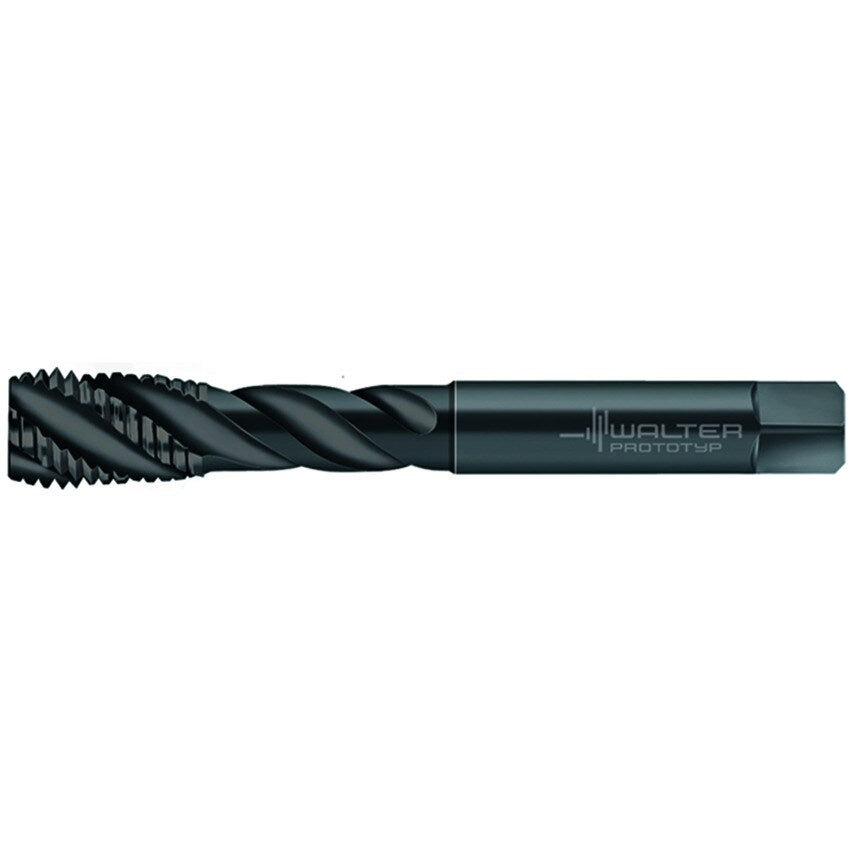

HSS-E (-PM) machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 376 right hand flute 50 Suitable for blind hole WY80FC M 16 P=0.0787in
| Tool Designation | TC142-M16-L0-WY80FC |
| Functional Length | 110mm |
| MFR Part No. | 6714344 |
| Usable Length | 68mm |
| Thread Size | M 16 |
| Clamping Width | 9mm |
| Thread Pitch | 2mm |
| Number of Grooves | 4 |
| Driving Square Length | 12mm |
| Connection Diameter | 12mm |
| Cutting Edge Length | 20mm |
