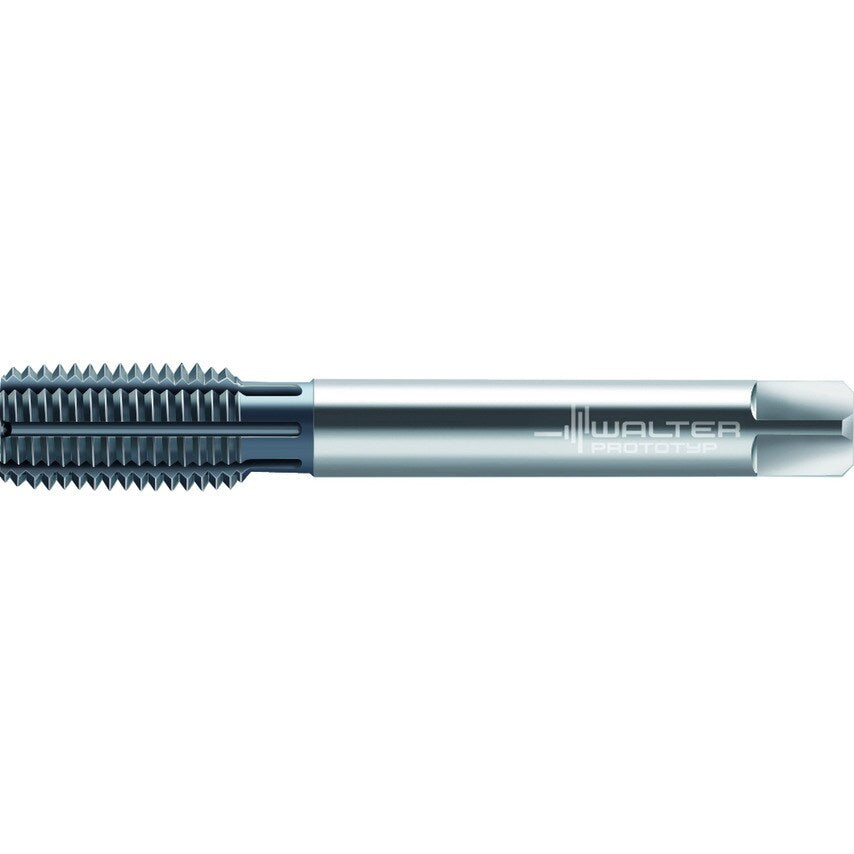

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole M 14 P=0.0787in
| Tool Designation | TC420-M14-L2-WW60BA |
| Thread Pitch | 2mm |
| Driving Square Length | 12mm |
| Connection Diameter | 11mm |
| Cutting Edge Length | 20mm |
| Number of Grooves | 6 |
| Usable Length | 81mm |
| MFR Part No. | 7427370 |
| Functional Length | 110mm |
| Thread Size | M 14 |
| Clamping Width | 9mm |
