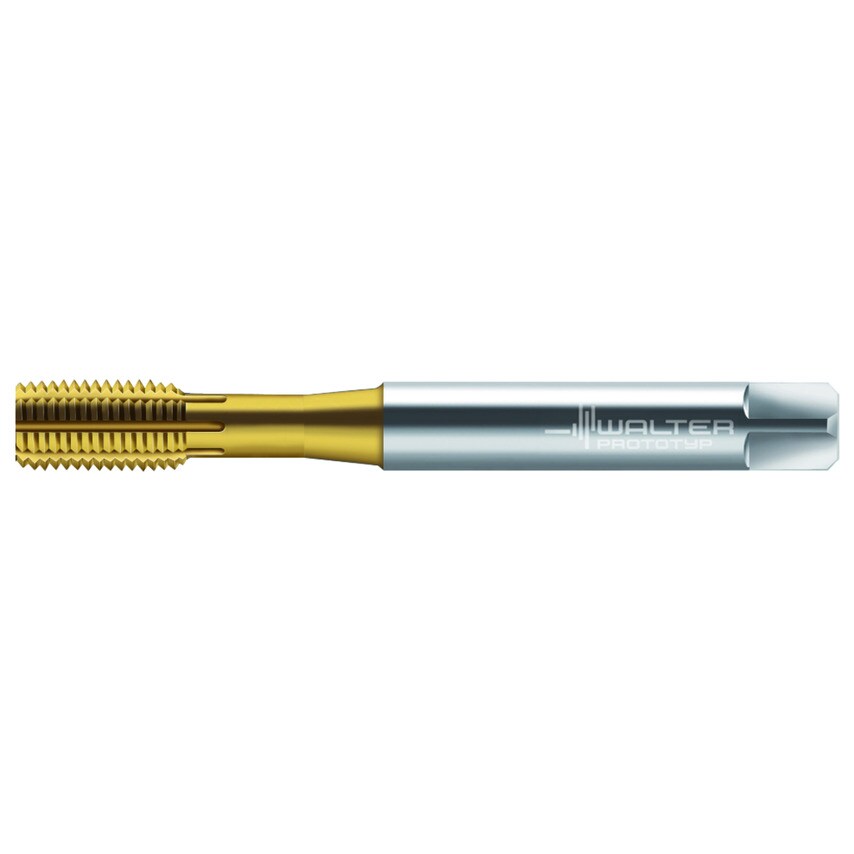

HSS-E-PM machine thread formers Supreme E = 1.5-2xTP (full bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60AD M 2.5 P=0.0177in
| Driving Square Length | 5mm |
| MFR Part No. | 7427395 |
| Clamping Width | 2.1mm |
| Number of Grooves | 3 |
| Tool Designation | TC420-M2.5-CE-WW60AD |
| Usable Length | 14mm |
| Functional Length | 50mm |
| Cutting Edge Length | 4mm |
| Thread Pitch | 0.45mm |
| Connection Diameter | 2.8mm |
| Thread Size | M 2.5 |
