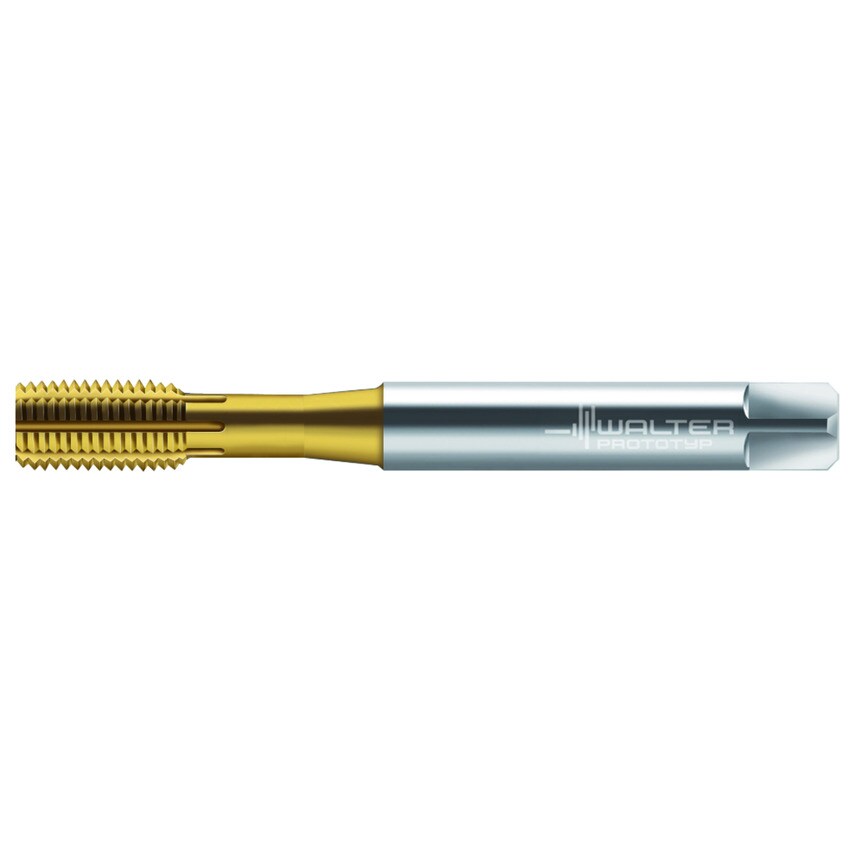

HSS-E-PM machine thread formers Supreme E = 1.5-2xTP (full bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60AD M 5 P=0.0315in
| Usable Length | 25mm |
| Thread Size | M 5 |
| Cutting Edge Length | 8mm |
| Connection Diameter | 6mm |
| MFR Part No. | 7427399 |
| Thread Pitch | 0.8mm |
| Driving Square Length | 8mm |
| Tool Designation | TC420-M5-CE-WW60AD |
| Functional Length | 70mm |
| Number of Grooves | 5 |
| Clamping Width | 4.9mm |
