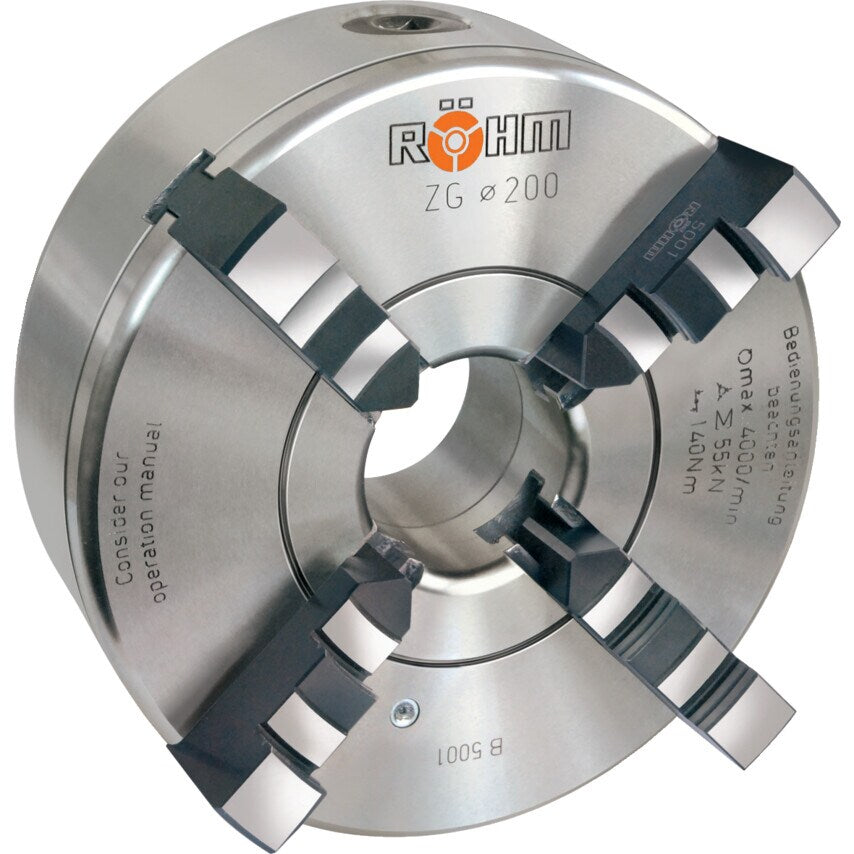

In the area of manual lathe chucks the Orange Line offers the geared scroll chuck ZG with cast iron body and one-piece jaws as alternative to the proven steel version ZS. Suitable adaptor flanges are also available.
Self-centring.
Jaws can be moved across the entire clamping range, workpieces of different diameters can be clamped without changing or shifting the jaws.
Vibration isolation body made of cast iron.
Scroll drop-forged, balanced and hardened.
Supplied with one set of external stepped jaws and one set of internal stepped jaws.
| Maximum Torque | 140Nm |
| Through Hole | 55mm |
| Material | Cast Iron |
| Maximum Speed | 3000rpm |
| Jaw | 4 |
| Mount | Rear |
| Standards Met | DIN6350 |
| Chuck Diameter | 200mm |
| Product Type | Scroll Lathe Chuck |
| Clamping Force | 55kN |
| MFR Part No. | 100465 |
