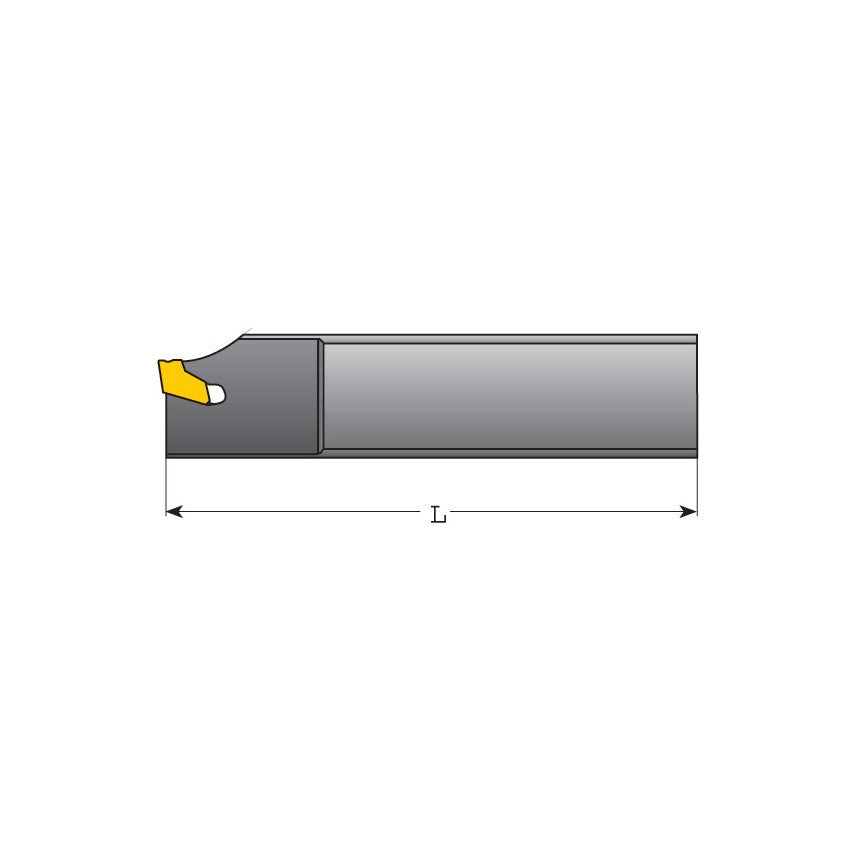

SGFHR/L Self-Grip Toolholder.For all dimensional specifications please refer to our catalogue.
| Number of Pockets | 2 |
| Cutting Application | Parting |
| Maximum Grooving Width | 5.5mm |
| ISO Designation | SGFH-32-5 |
| Blade Height | 32mm |
| Insert Style | GFN/R/L |
| Maximum Grooving Depth | 60mm |
| Blade Style | SELF-GRIP |
| Cutting Height | 24.8mm |
| Series | SelfGrip |
| Blade Width | 3.2mm |
| Minimum Grooving Width | 4.54mm |
| Seat Size | 5 |
| Coolant Delivery | External |
| MFR Part No. | 2300528 |
| Compatible Modular Toolholder | SGTBU | TGTBU |
| Blade Length | 150mm |
| Blade Type | Parting |
| Cutting Direction | Left Hand | Right Hand |
| Workpiece Diameter | 120 |
