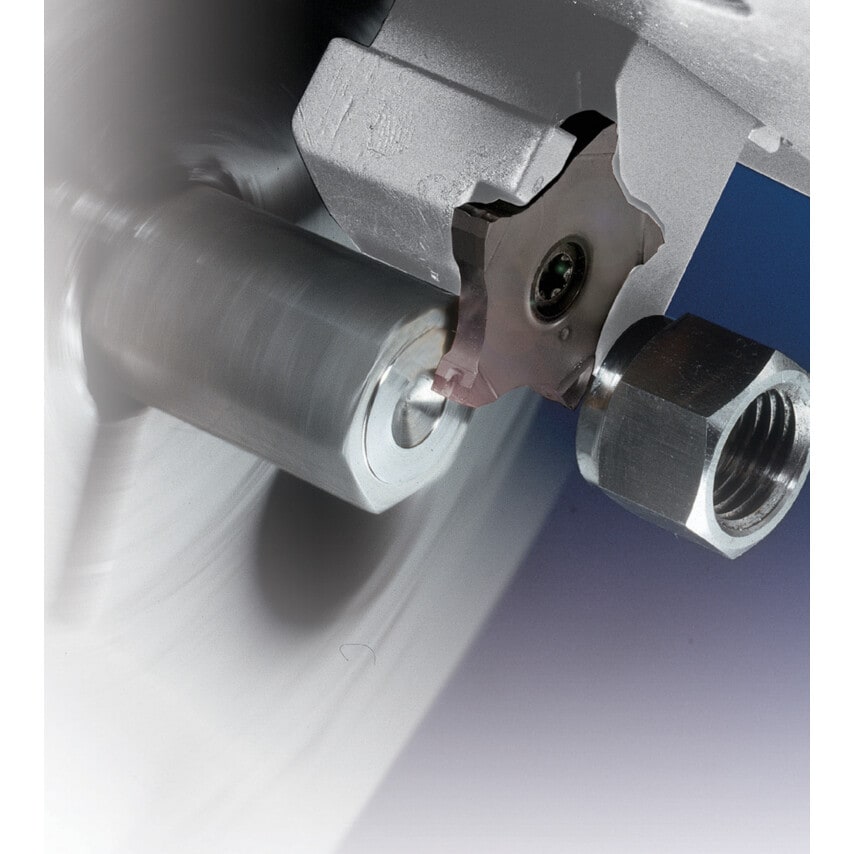

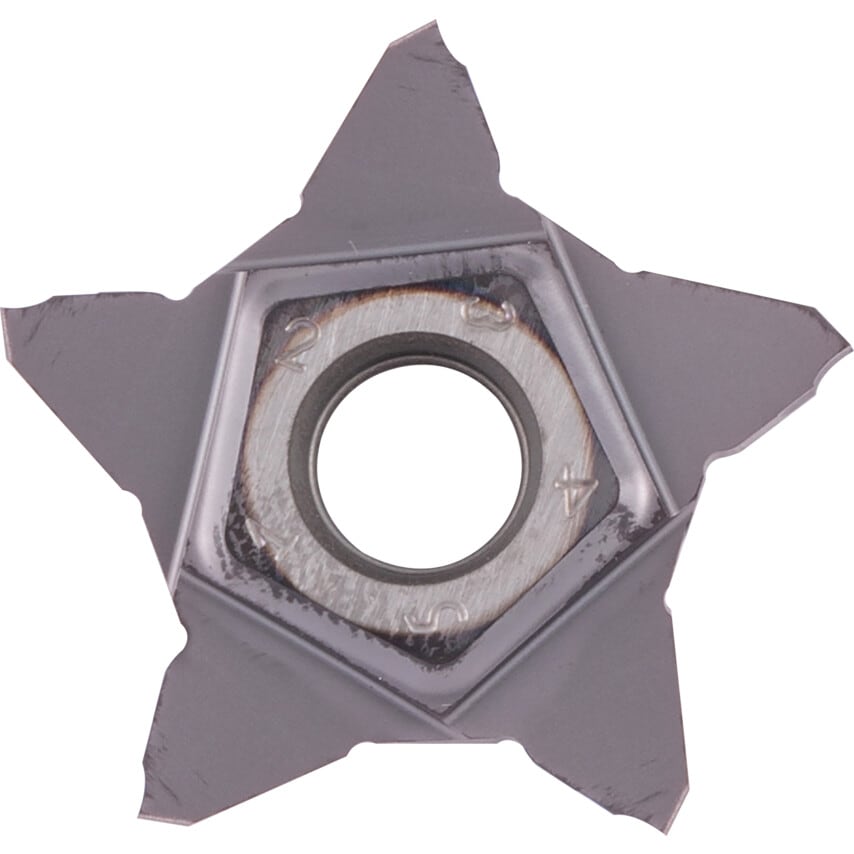

ISCAR has developed a new insert designated PENTACUT, with 5 cutting edges, for multifunction applications including grooving, parting, recessing and chamfering. This cost effective insert is designed to perform shallow grooving operations and parting of small solid bars up to 12.5 mm in diameter. Each cutting edge on the pentagonal shaped insert is equipped with a unique J-type positive chipformer that provides excellent chip control in grooving, parting and recessing (light side turning) applications.For all dimensional and technical specifications please refer to our catalogue.
| Material | Carbide |
| Series | Pentacut |
| Insert Size | 12.5mm |
| Cutting Application | Chamfering | Grooving | Parting | Recessing |
| Manufacturer Grade | IC908 |
| ISO Designation | PENTA 24N200J020 |
| Product Type | Inserts |
