DGFH 26-3 Do-Grip Double Ended Parting and Grooving Blade

DGFH Double-ended parting and grooving blades For use with DO-GRIP and HELI-GRIP DGN / DGNC double-ended inserts. Double ended insert self clamped for deep grooving and large diameters. Screw clamped for small diameters. Extended, prismatic surfaces guarantee reliable, foolproof clamping even in unstable machining conditions.

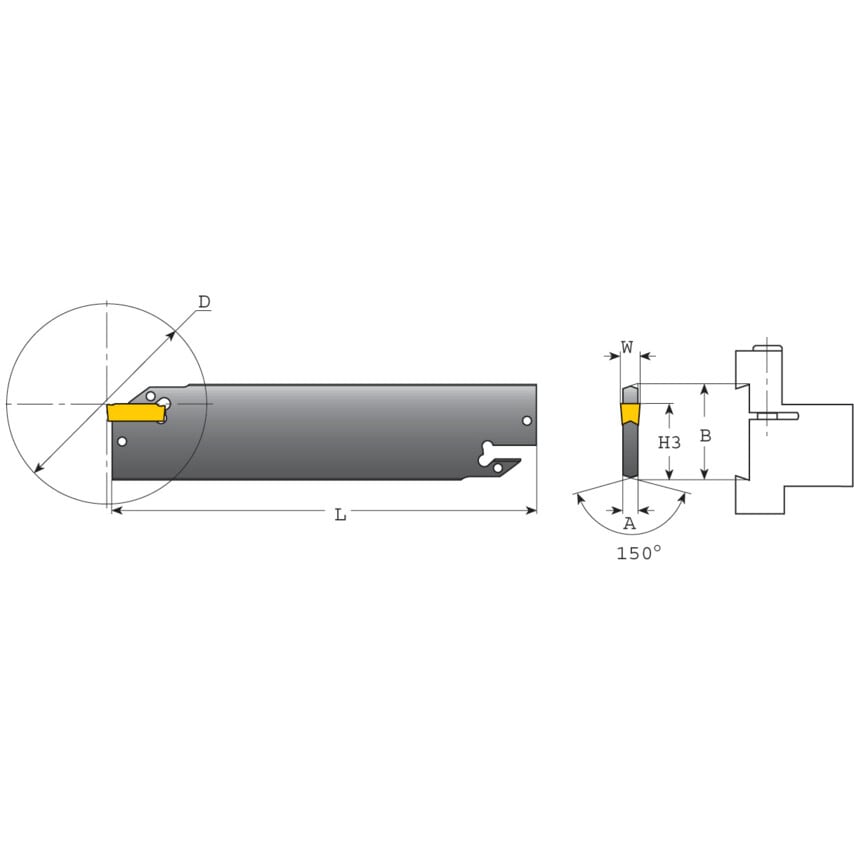

Cutting Height	21.4mm
Blade Height	26.0mm
Seat Size	3
Maximum Grooving Depth	19.5mm
Workpiece Diameter	39
MFR Part No.	2301242
Maximum Grooving Width	3.18mm
Insert Style	DGN/R/L
Minimum Grooving Width	3.00mm
Number of Pockets	2
Blade Length	110mm
ISO Designation	DGFH 26-3
Blade Width	2.40mm
Cutting Application	Grooving | Parting
Series	Do-Grip
Blade Type	Blade
