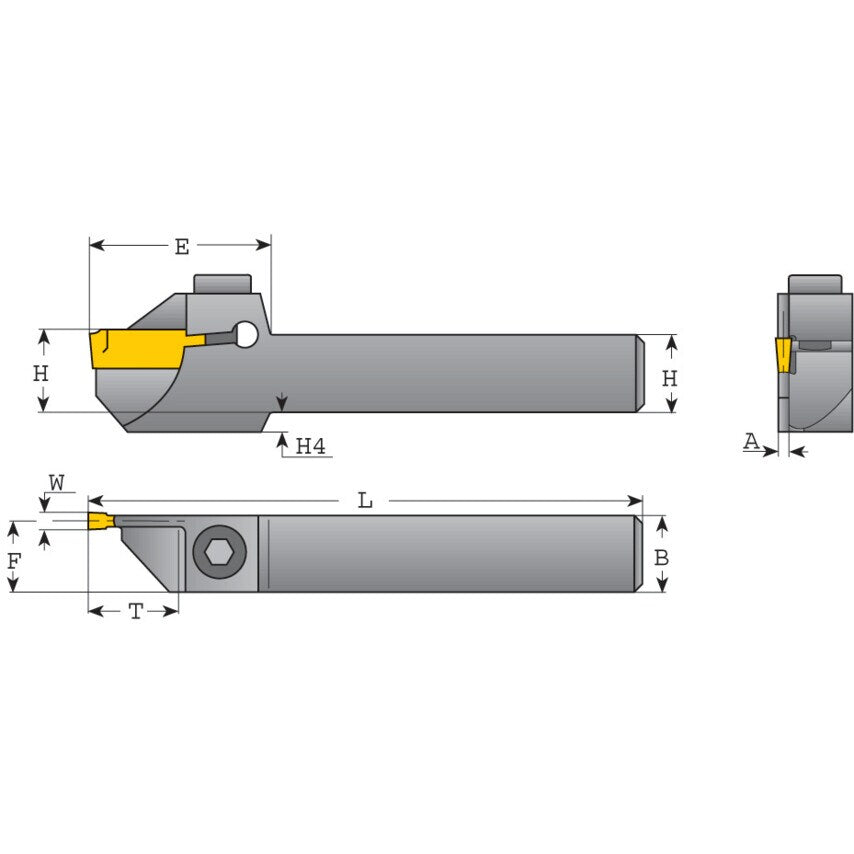

Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.
| Blade Style | DO-GRIP HOLDER |
| Seat Size | 3 |
| ISO Designation | DGTL 16B-3D35 |
| Blade Width | 2.4mm |
| Blade Height | 16mm |
| Number of Pockets | 1 |
| Blade Type | Tool Holder |
| Maximum Grooving Width | 3.18mm |
| Blade Length | 140mm |
| Series | Do-Grip |
| Maximum Grooving Depth | 17.5mm |
| Minimum Grooving Width | 3mm |
| Insert Style | DGN/R/L |
| Cutting Application | Grooving | Parting |
| Workpiece Diameter | 35 |
| MFR Part No. | 2301399 |
| Cutting Height | 16mm |
