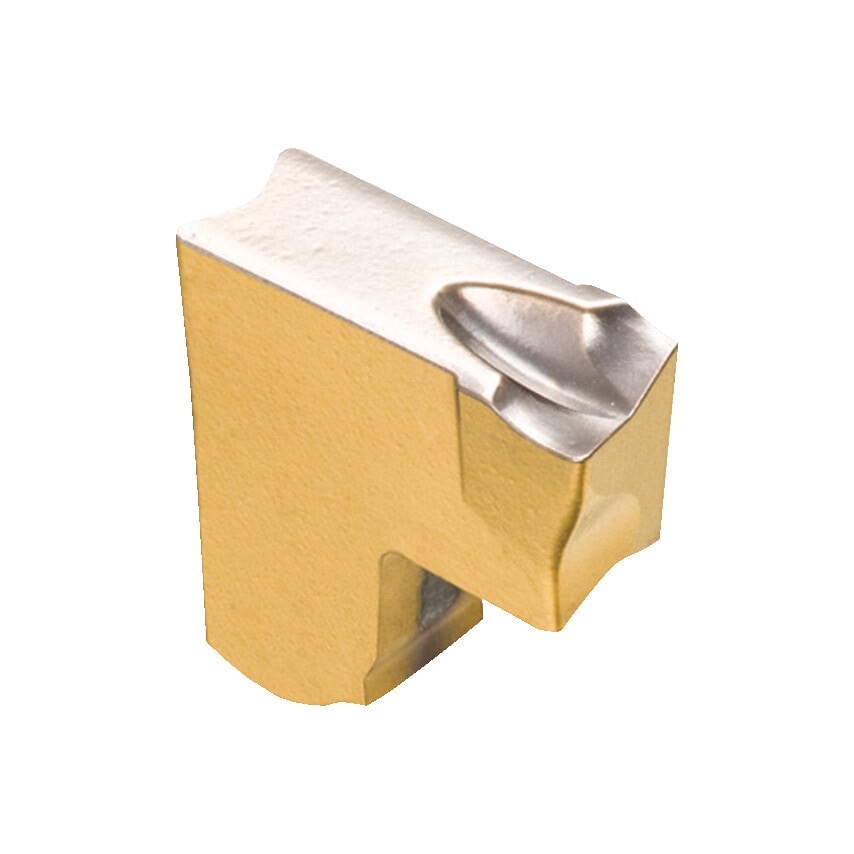

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. General applications on low carbon steel, alloy steel, austinitic stainless steel. Low-to-medium feed.
IC830 Grade Description:
(P20-P50/M20-M40/K15-K40/ S15-S40) PVD TiAlN coated tough grade followed by a special SUMO TEC surface treatment. Suitable for milling stainless steel, high temperature alloys and other alloy steels. Recommended for interrupted cut and heavy operations.

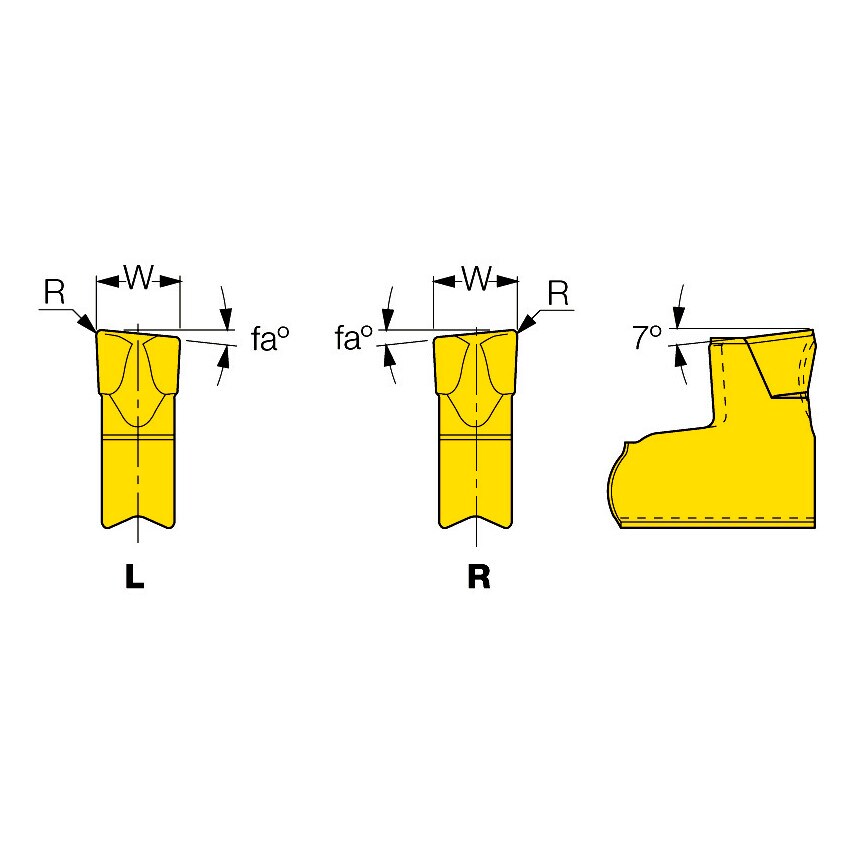

| Manufacturer Grade | IC830 |
| ISO Category Grade | M | P |
| Insert Style | TAG |
| Series | Tang-Grip |
| Finish/Coating | Multilayer TiAlN/TiN |
| Grooving Width | 1.4mm |
| Material | Carbide |
| Cutting Application | Grooving | Parting |
| Compatible Materials | High-Temperature Alloys | Stainless Steel | Steel |
| Chipbreaker | J |
| Corner Radius | 0.16mm |
| ISO Designation | TAG L1.4J-8D |
| Insert Holding Type | Self Grip |
| Cutting Direction | Left Hand |
| MFR Part No. | 6004472 |
| Radius Type | Corner Radius |
| Cutting Location | External |
