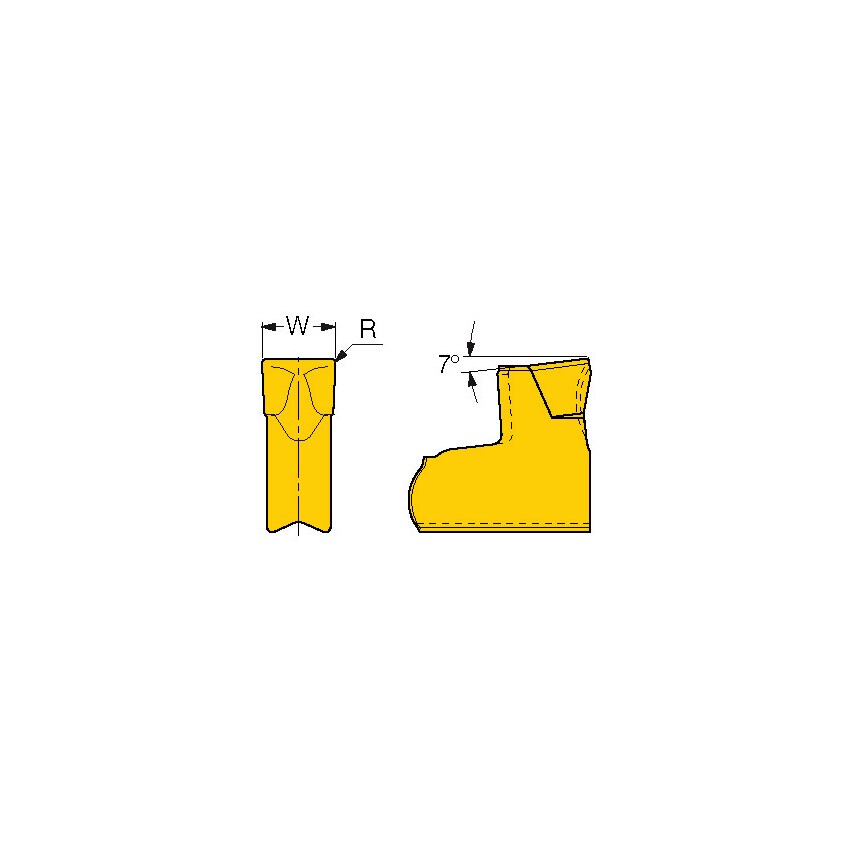

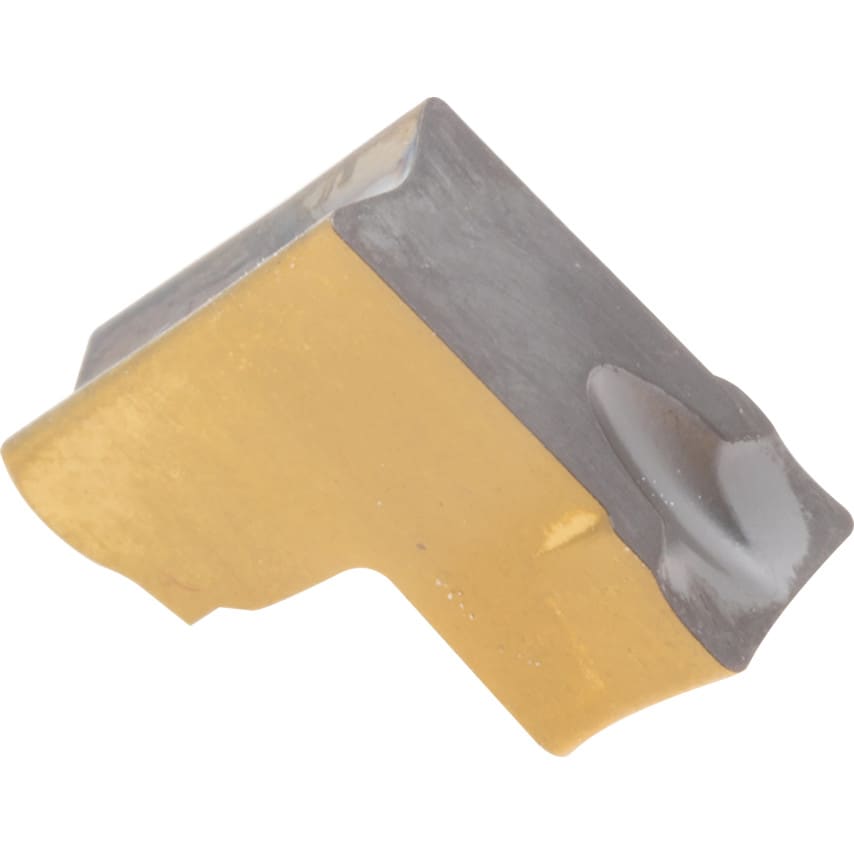

TAG N-J/JS/JT
Parting and grooving inserts
Single-ended insert For Parting - With a vastly improved clamping method.
Features and Benefits
Incredibly rigid clamping in a tangentially oriented pocket
Allows machining at very high feed rates and provides excellent straightness and surface finish
Recommended for parting large diameter parts - great for interrupted cuts
Offers a free, unobstructed chip flow - since there is no upper jaw like in other clamping systems (very important in deep grooving and parting applications)
The combination of tangential clamping and free chip flow results in improved tool and insert life time
Provides a solution to the problem of inserts being pulled out during retraction
The TAG inserts are available with the familiar J- and C-Type chipformers, with neutral and angular frontal cutting edges. The new tools are equipped with a user-friendly clamping and extraction device. The TANG-GRIP family includes square shank tools, blades and inserts in 1.4 - 9.5mm widths in the most advanced IC830 and IC808 SUMO TEC grades. The blades are in standard siuzes which fit ISCAR's standard blocks.
| Corner Radius | 0.2mm |
| Manufacturer Grade | IC808 |
| Cutting Application | Grooving | Parting |
| Radius Type | Corner Radius |
| MFR Part No. | 6003578 |
| ISO Designation | TAG N3J |
| Cutting Direction | Neutral |
| Series | Tang-Grip |
| Insert Holding Type | Self Grip |
| Material | Carbide |
| Grooving Width | 3.05mm |
| Finish/Coating | Multilayer TiAlN/TiN |
| Insert Style | TAG |
| Chipbreaker | J |
| Compatible Materials | Cast Iron | High-Temperature Alloys | Stainless Steel | Steel | Titanium |
| Cutting Location | External |
| ISO Category Grade | M | P |
