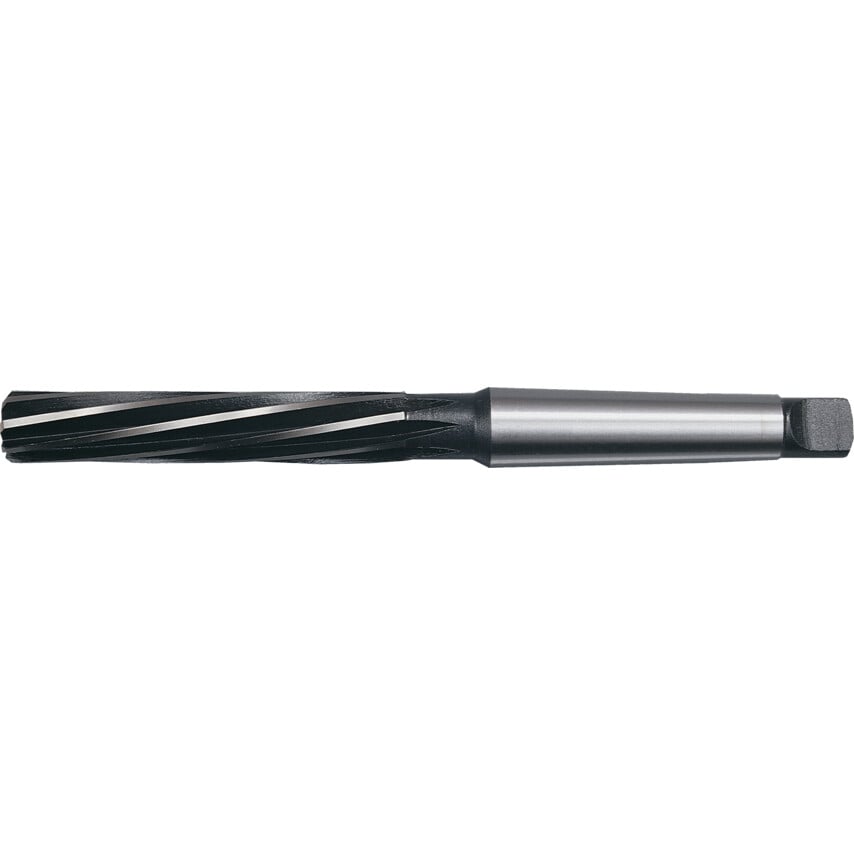

Sherwood machine reamers are used to produce a close tolerance surface finish by enlarging pre-drilled holes to a finished size. Manufactured from HSS with a 45 bevelled head. Conform to BS 122 : Part 2 and BS 328 Part 4.
INCH TOLERANCES:
Diameter: ~ up to 7/64". Tolerance: +0.0003, -0.0001.
Diameter: Over 7/64" ~ up to 15/64". Tolerance: +0.0004, -0.0002.
Diameter: Over 15/64" ~ up to 25/64". Tolerance: +0.0005, -0.0002.
Diameter: Over 25/64 ~ up to 43/64". Tolerance: +0.0006, -0.0003.
Diameter: Over 43/64 ~ up to 1 1/8". Tolerance: +0.0007, -0.0004.
Diameter: Over 1 1/8" ~ up to 1 1/2". Tolerance: +0.0008, -0.0004.
Diameter: Over 1 1/2" ~ up to 2". Tolerance: +0.0010, -0.0005.
| Finish/Coating | Steam Tempered |
| Reamer Type | Fixed |
| Flute Type | Left Hand Spiral |
| Diameter Tolerance | +0.0007 to 0.0004 |
| Shank Type | Taper Shank |
| Taper Shank Size | 3 |
| Standards Met | BS 122 | BS 328 |
| Length Type | Taper Shank |
| Cutting Direction | Right Hand |
| Overall Length | 9-1/2in |
| Flute Length | 4-1/2in |
| Reamer Diameter | 1in |
| Material | HSS |
| Number of Flutes | 10 |
