Metric.

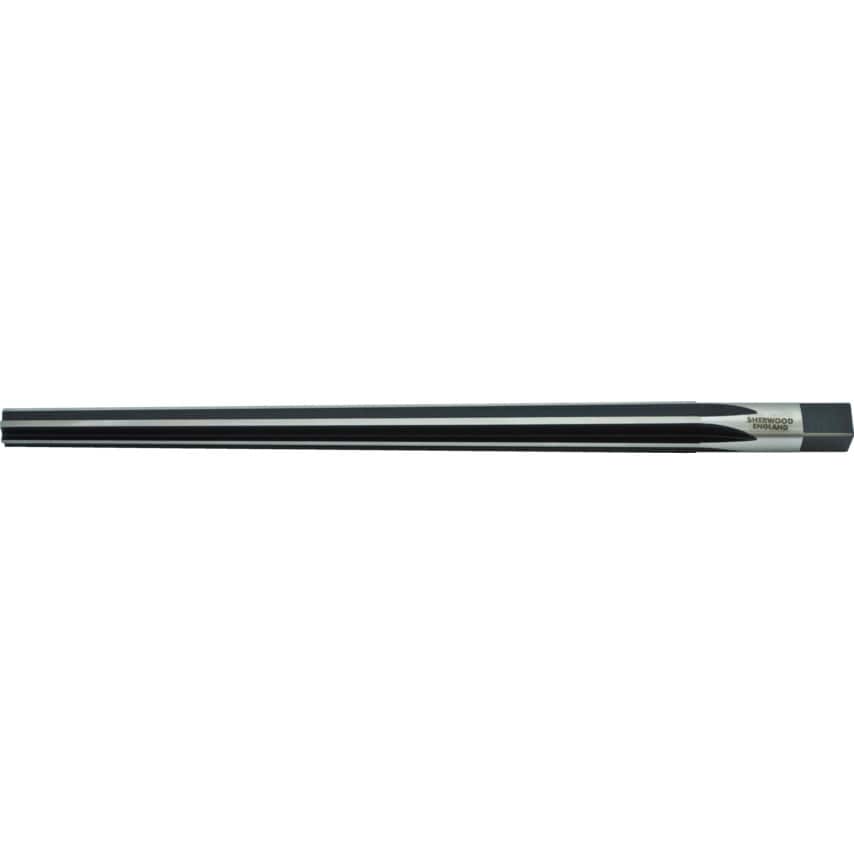

Used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A.
METRIC TOLERANCES:
Diameter: Over 1.50 ~ up to 5.00. Tolerance: +0.075, -0.000.
Diameter: Over 5.00 ~ up to 20.00. Tolerance: +0.125, -0.000.
| Diameter Range Min | 1.4mm |
| Shank Type | Taper Pin |
| Material | HSS |
| Reamer Diameter | 1.5mm |
| Diameter | 1.5mm |
| Overall Length | 57mm |
| Flute Length | 37mm |
| Diameter Range Max | 2.4mm |
