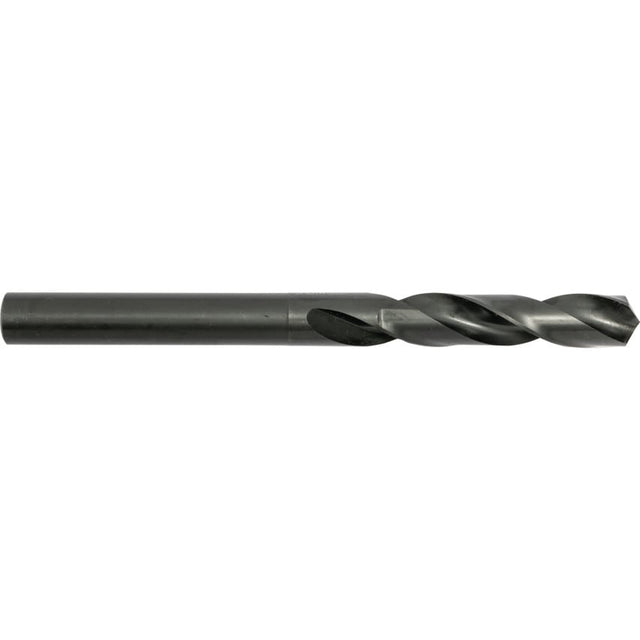

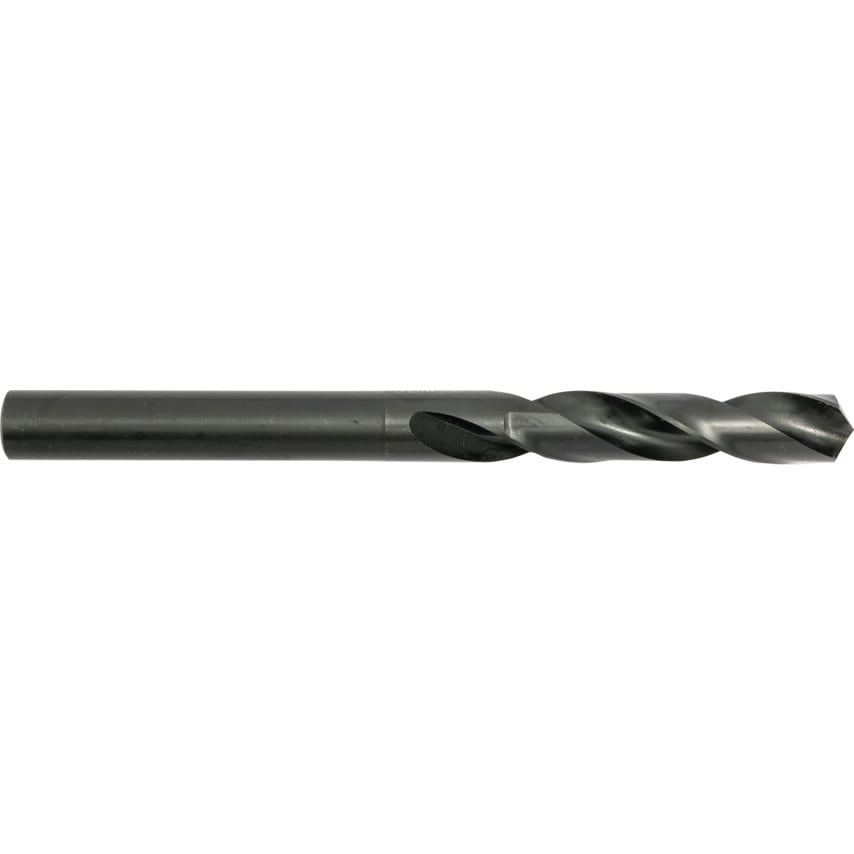

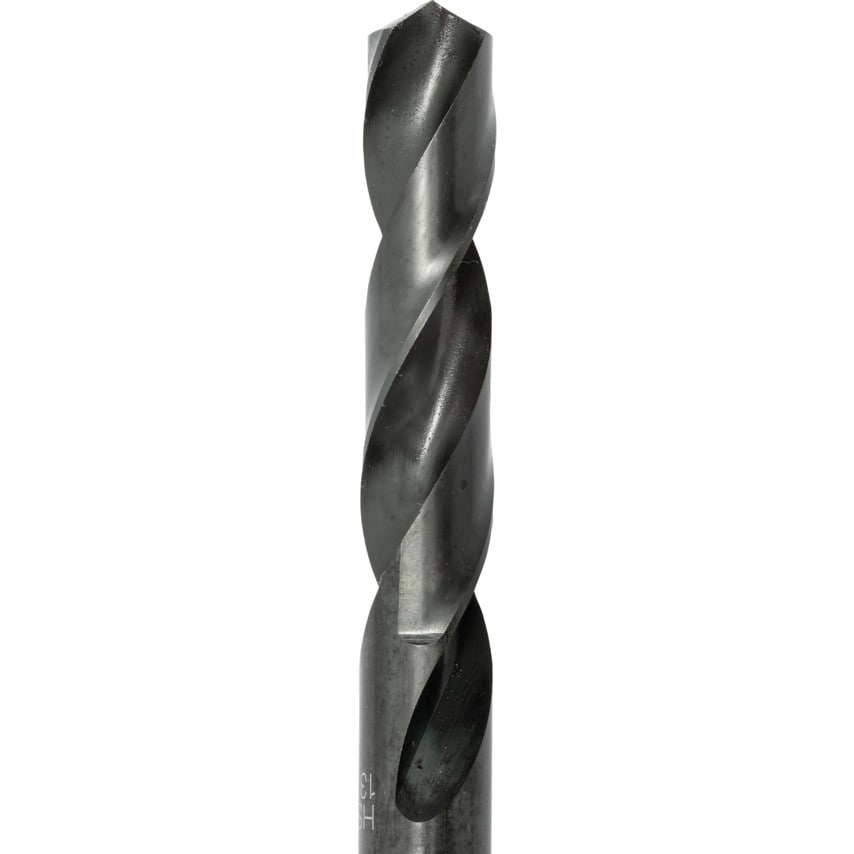

General purpose metric drills for drilling steels, cast iron, nickel brass and graphite.
These HSS drills are designed for light duty work.
Features and Benefits
1/2in. reduced parallel shank for drilling larger holes
Standards
Manufactured to works standard
| Finish/Coating | Uncoated |
| Point Angle | 118\u00b0 |
| Web Thickness | Standard |
| Shank Diameter Tolerance | -0.125 |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 13 |
| Point Type | Standard |
| Shank Diameter | 1/2in |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
| Drill Diameter | 13mm |
| Flute Type | Spiral |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Standards Met | Works Standards |
| Shank Type | Reduced Shank |
| Coolant Delivery | External |
| Flute Length | 78.00mm |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 150mm |
| Material Grade | M2 |
