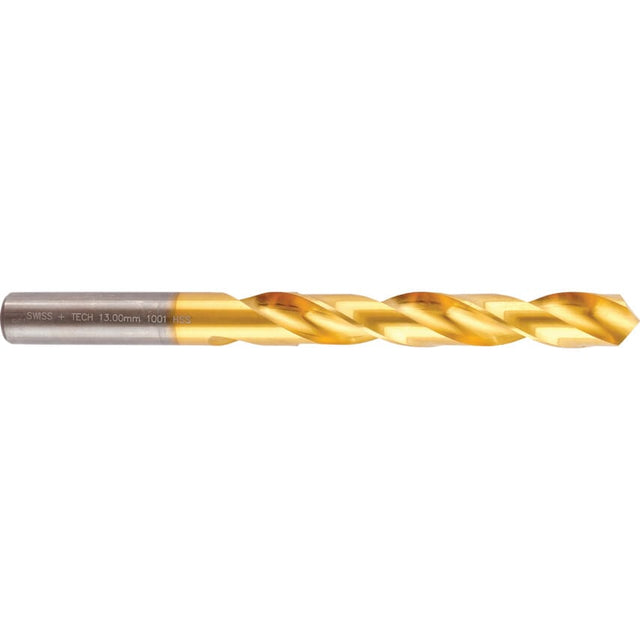

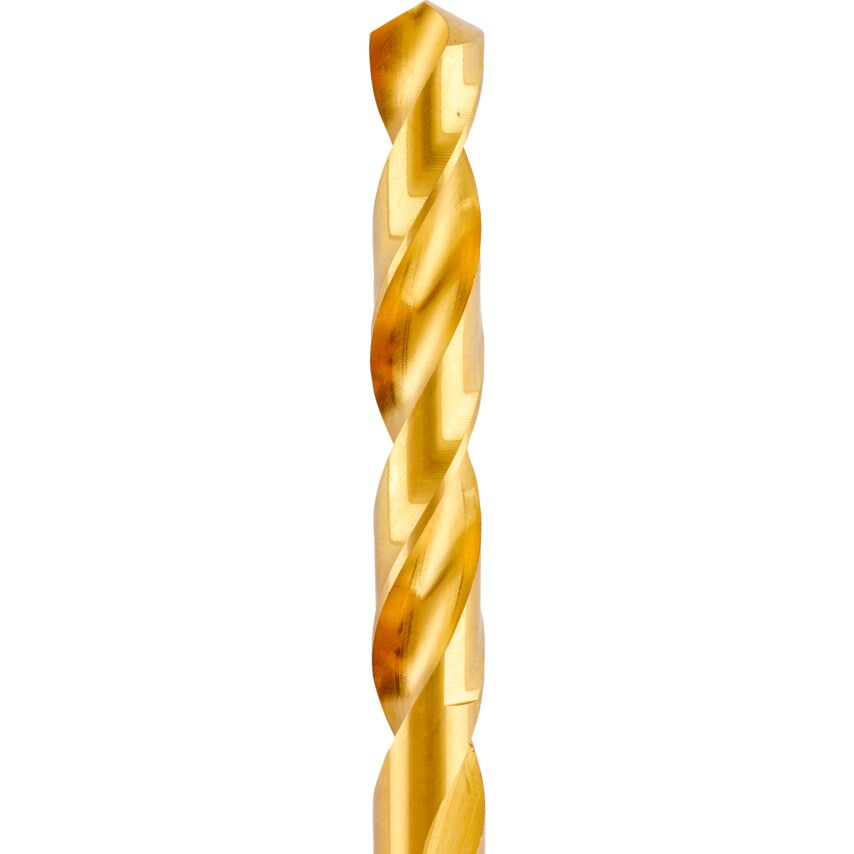

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Helix Angle | 28\u00b0 |
| Material | HSS |
| Flute Construction | Ground flutes |
| Overall Length | 151mm |
| Shank Type | Straight |
| Point Type | Thinned Chisel Edge |
| Finish/Coating | TiN |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Drill Diameter | 13mm |
| Helix Type | Normal Helix |
| Product Type | Jobber Drills |
| Shank Diameter Tolerance | F11 |
| Flute Length | 101mm |
| Manufacturer Grade | DIN338 |
| Number of Pieces | 5 |
| Drill Diameter Metric | 13mm |
| Coolant Delivery | External |
| ISO Category | K | M | P |
| Material Grade | HSS |
| Flute Type | Spiral |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Series | 1001 |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Standard |
| Depth x Diameter Ratio | 4xD |
