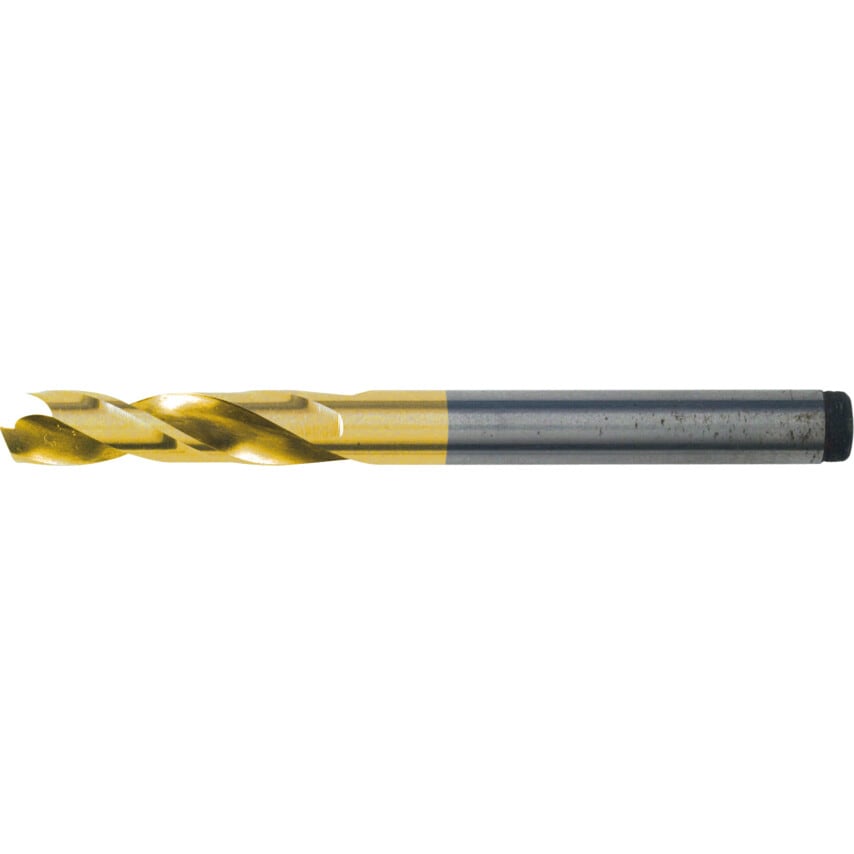

Series 2001 are general purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. The TiN coating provides longer tool life or increased cutting speeds. Manufactured to BS 328, DIN 1897 RN.
Features and Benefits
High speed steel construction for improved durability
TiN coating for longer lifespan and increased cutting speeds
For drilling steels, cast iron, alloy steel and malleable cast iron
Standards
BS 328, DIN 1897 RN
| Finish/Coating | TiN |
| Web Thickness | Form A | Thinned Chisel Edge |
| Material | HSS |
| Cutting Direction | Right Hand |
| Point Angle | 118\u00b0 |
| Number of Pieces | 1 |
| System of Measurement | Metric |
| Number of Flutes | 2 |
| Series | 2001 |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Overall Length | 102mm |
| Flute Type | Spiral |
| Flute Length | 51mm |
| Drill Diameter Metric | 13 |
| Standards Met | BS 328 | DIN 1897RN |
| Drill Diameter | 13mm |
| Shank Diameter Tolerance | F11 |
| Helix Type | Normal Helix |
