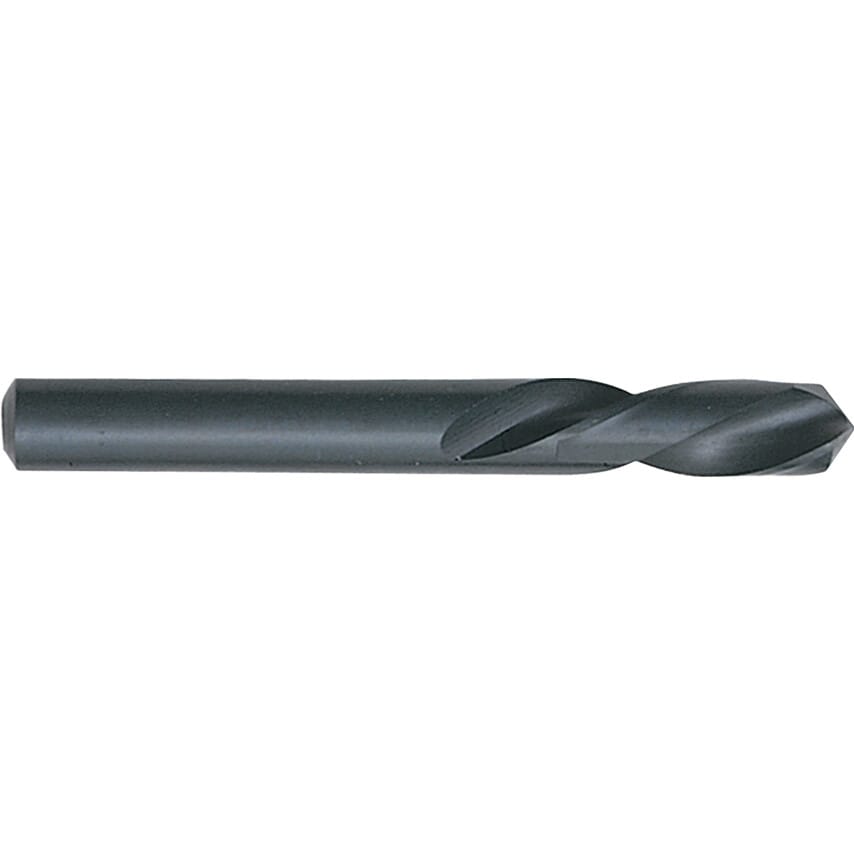

Series S100 HSS straight shank stub drills are designed as general purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron.
Features and Benefits
Manufactured form HSS for strength and rigidity when machining
Black oxide coating for additional heat and wear resistance
Designed for use on automatic and turret lathes
Typical Applications
Drilling
Steels
Cast iron
Alloy steel
Malleable cast iron
Standards
Manufactured to BS328: Part 1: 1986/DIN 1897.
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Series | S100 |
| Drill Diameter | 1/2in |
| Material | HSS |
| System of Measurement | Inch |
| Drill Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Overall Length | 102mm |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Flute Length | 51mm |
| Standards Met | BS 328 |
| Finish/Coating | Black Oxide |
| Helix Angle | 10-20\u00b0 |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Web Thickness | Standard |
| Drill Diameter Inch | 1/2 |
| Flute Type | Spiral |
