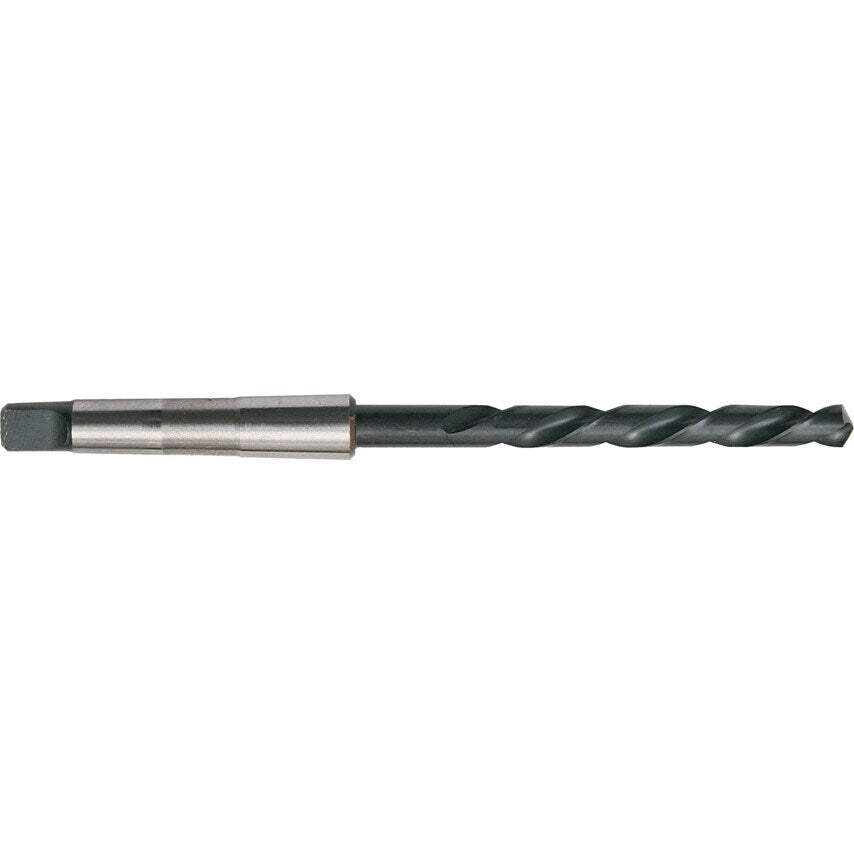

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Finish/Coating | Black Oxide |
| Point Type | Thinned Point |
| Drill Diameter Tolerance | H8 |
| Point Angle | 118\u00b0 |
| Helix Angle | Normal |
| Flute Length | 175mm |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Drill Length Type | Standard Length |
| Overall Length | 296mm |
| Shank Diameter Tolerance | DIN 228 |
| Series | T100 |
| Standards Met | DIN 345 |
| Size | 29mm |
| Coolant Delivery | External |
| Drill Diameter Metric | 29 |
| Taper Shank Size | MT3 |
| Product Type | HSS T/S Drill |
| Drill Diameter | 29mm |
| Material | HSS |
