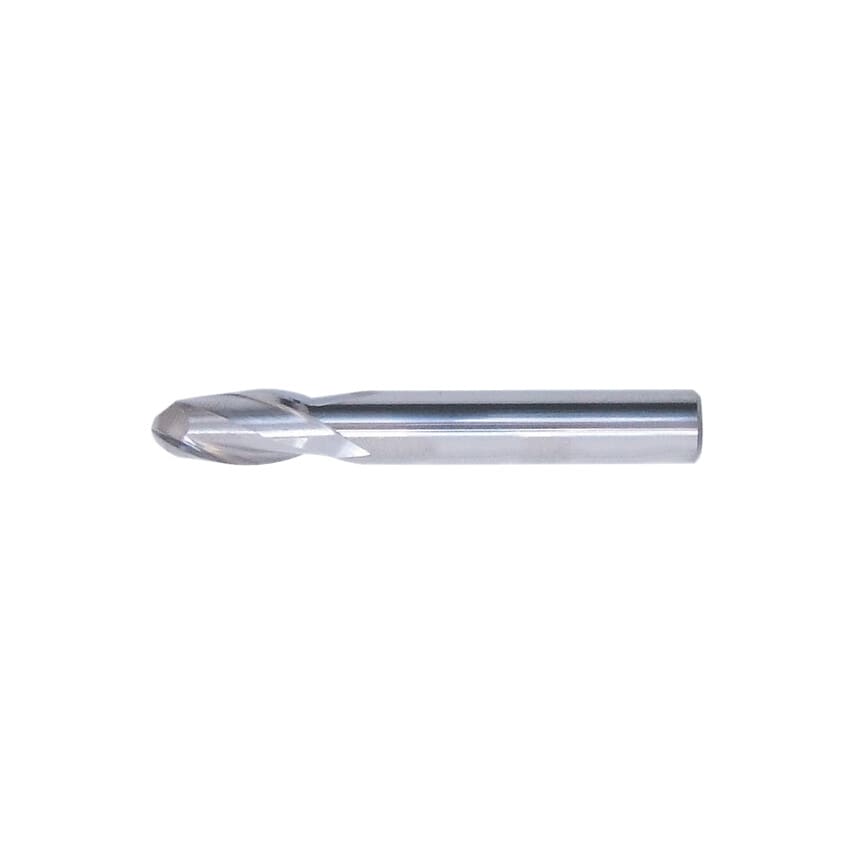

Regular Series - 2 Flute - Inch
For optimum performance and maximum swarf removal when plunging, slotting and routing in most materials including brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Inch Tolerances
Diameter: Over 1/16" ~ up to 1/4". Tolerance: +0.000, -0.002.
Diameter: Over 1/4" ~ up to 1". Tolerance: +0.000, -0.003.
| Material Application | Aluminium | Nonferrous Metals | Other Soft Materials |
| Milling Application | Plunging | Routing | Slotting |
| Overall Length | 2.1/2in |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 2 |
| Shank Diameter | 1/4in |
| Standards Met | USCTI Standards |
| Finish/Coating | Uncoated |
| Flute Type | Helical |
| Flute Length | 3/4in |
| System of Measurement | Inch |
| Coolant Delivery | External |
| Material Grade | Micrograin |
| Plunge Type | Non-centre Cutting |
| Length Type | Regular |
| Material | Carbide |
| ISO Designation | N |
| Cutting Direction | Right Hand |
| Cutter Style | Ball Nose |
| Shank Type | Plain Round |
| Cutter Diameter | 1/4in |
