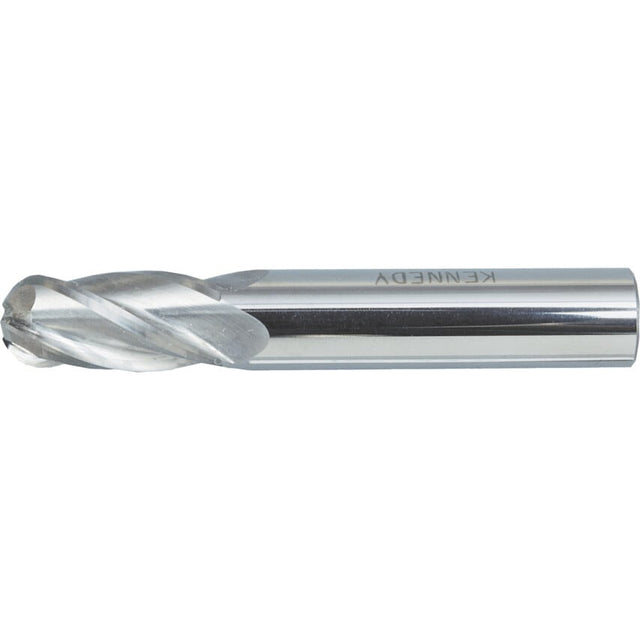

Regular Series - 4 Flute - Inch
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Material Application | Aerospace Alloys | Alloy Steel | Aluminium | Aluminium Alloys | Brass | Copper | Stainless Steels | Steels |
| MFR Part No. | E5250016 |
| Reach Type | Standard Neck |
| Length Type | Regular |
| Overall Length | 2-1/2in |
| Number of Flutes | 4 |
| Cutter Diameter | 1/4in |
| Plunge Type | Centre Cutting |
| Shank Type | Plain Round |
| Standards Met | ANSI |
| Cutting Diameter (in.) | 1/4in |
| Milling Application | High-feed Milling |
| Finish/Coating | Uncoated |
| System of Measurement | Inch |
| Cutting Direction | Right Hand |
| Shank Diameter | 1/8in |
| Milling Cutter Type | End Mills |
| Ball Nose Type | Ball Nose End Mill |
| Coolant Delivery | External |
| Material | Solid Carbide |
| Flute Type | Helical |
| Cutter Style | Ball Nose |
| Flute Length | 3/8in |
