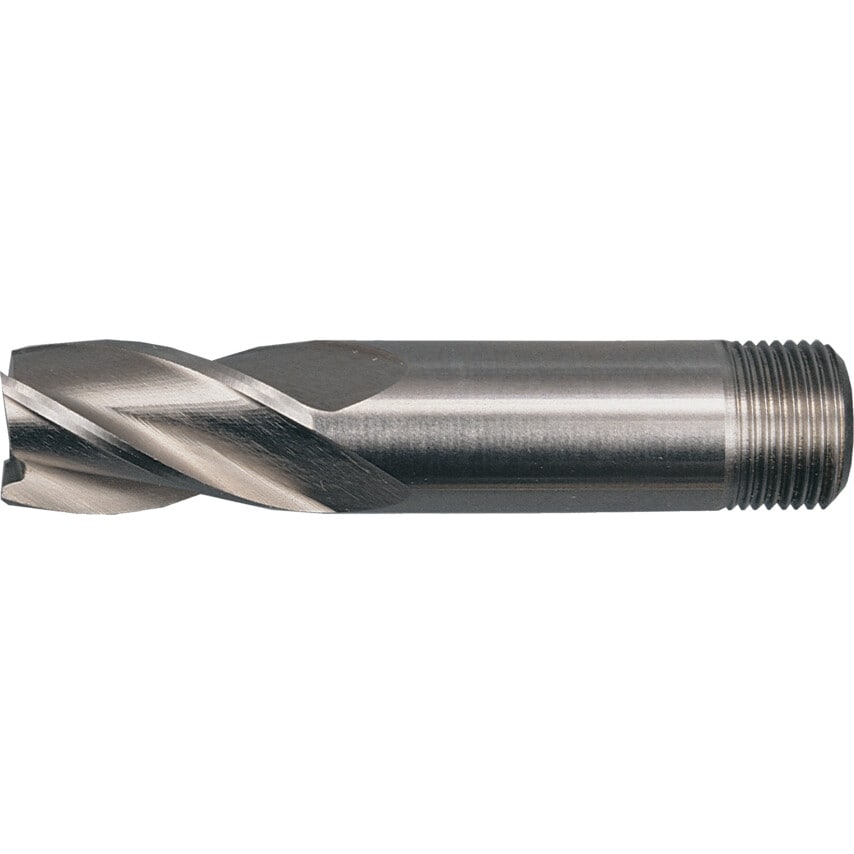

Short Series E410T.
Used for profile milling and producing open slots. Bright finish. Flute type : 30 helix.
Manufactured to BS 122 : Part 4 : 1980.
INCH TOLERANCES:
Diameter: up to 1/2". Tolerance: +0.0025, -0.0005.
Diameter: Over 1/2" ~. Tolerance: +0.0050, -0.0000.
| Milling Cutter Type | End Mills |
| Number of Flutes | 6 |
| End Mill Type | End Mill |
| Shank Type | Threaded |
| Material | HSS |
| Reach Type | Standard Neck |
| Plunge Type | Non-centre Cutting |
| Helix Angle | 30\u00b0 |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 1in |
| Overall Length | 4in |
| Cutter Diameter Tolerance | K10 |
| Flute Length | 1-11/16in |
| Length Type | Short |
| Standards Met | BS 122 |
| Material Grade | M2 |
| Cutting Direction | Right Hand |
| Shank Diameter | 1in |
| Series | E410T |
| System of Measurement | Inch |
| Finish/Coating | Bright |
