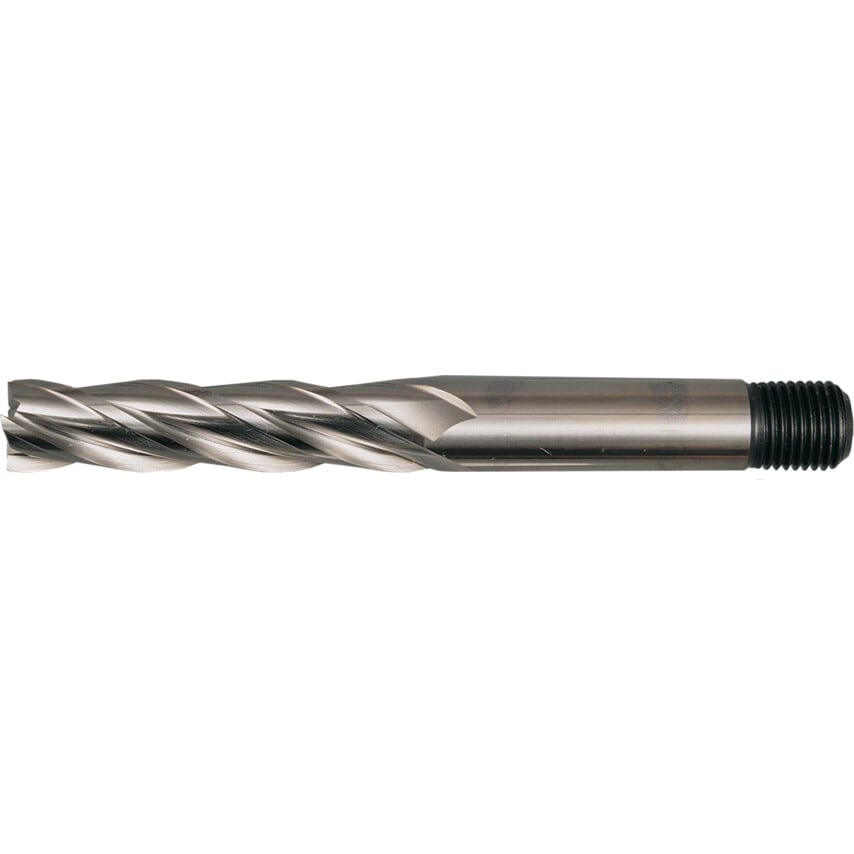

Long Series E430T.
Used for profile milling and producing open slots. Bright finish. Flute type: 30 helix. Manufactured to BS 122 : Part 4 : 1980.
Inch Tolerances:
Diameter: up to 1/2". Tolerance: +0.0025, 0.0005.
Diameter: Over 1/2". Tolerance: +0.0050, 0.0000.
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Cutter Diameter | 1in |
| Flute Length | 3-15/16in |
| End Mill Type | End Mill |
| Overall Length | 6 -3/16in |
| Material | HSS |
| Series | E304T |
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| Plunge Type | Non-centre Cutting |
| Material Grade | M2 |
| Standards Met | BS 122 |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 1in |
| Length Type | Long |
| System of Measurement | Inch |
| Flute Type | Helical |
| Shank Type | Threaded |
| Cutter Style | Square End |
| Number of Flutes | 6 |
| Cutter Diameter Tolerance | K10 |
