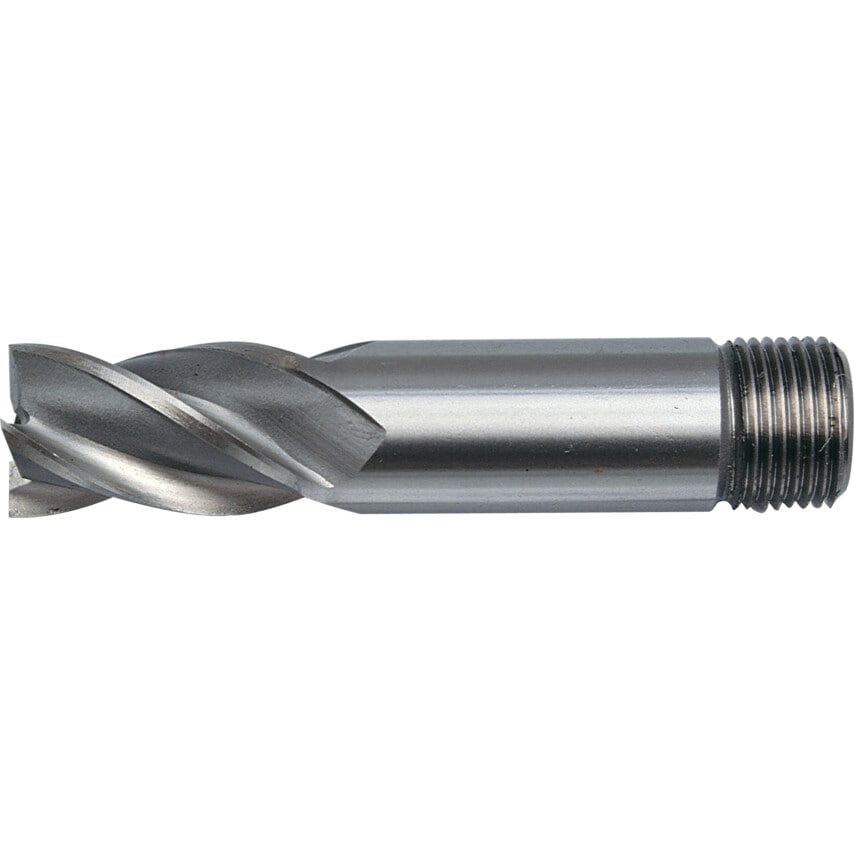

Regular Series Type E411T.
Used for profile milling and producing open slots. Bright finish. Flute type : 30 helix.
Manufactured to BS 122 : Part 4 : 1980.
Inch Tolerances:
Diameter: up to 1 1/2". Tolerance: +0.0025, -0.0005.
Diameter: Over 1 1/2". Tolerance: +0.0050, -0.0000.
| Length Type | Regular |
| Cutter Diameter Tolerance | K10 |
| Number of Flutes | 4 |
| Coolant Delivery | External |
| Series | E411T |
| Material Grade | M35 |
| End Mill Type | End Mill |
| Cutter Diameter | 1/4in |
| Plunge Type | Non-centre Cutting |
| System of Measurement | Inch |
| Overall Length | 2-3/8in |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Flute Type | Helical |
| Cutter Style | Square End |
| Shank Diameter | 1/4in |
| Standards Met | BS 122 |
| Shank Type | Threaded |
| Flute Length | 5/8in |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
