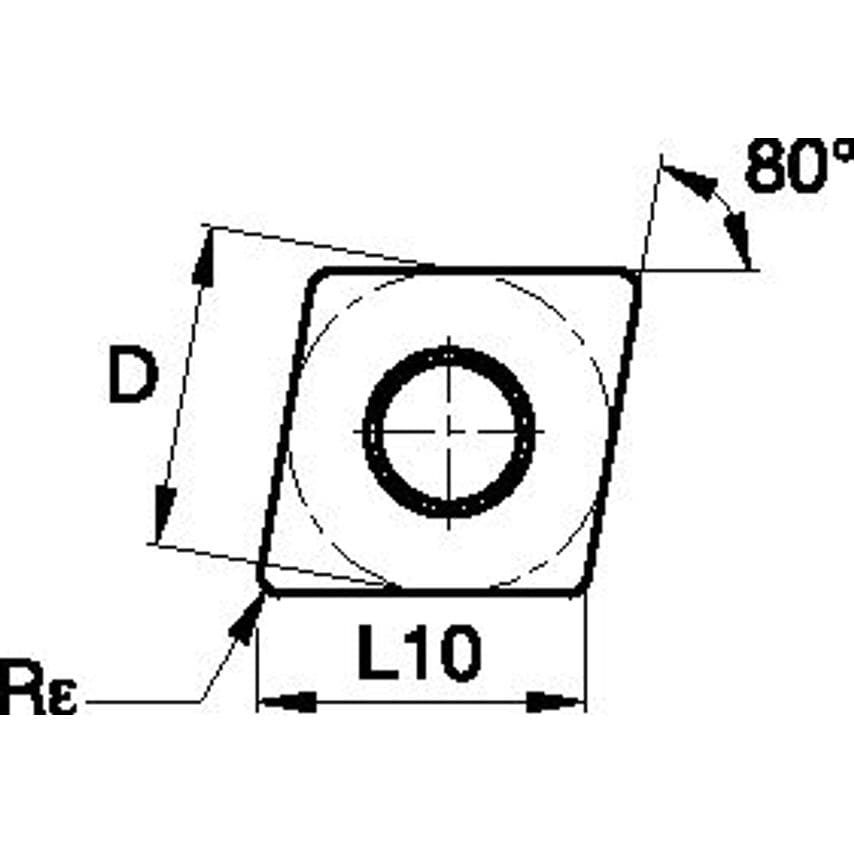

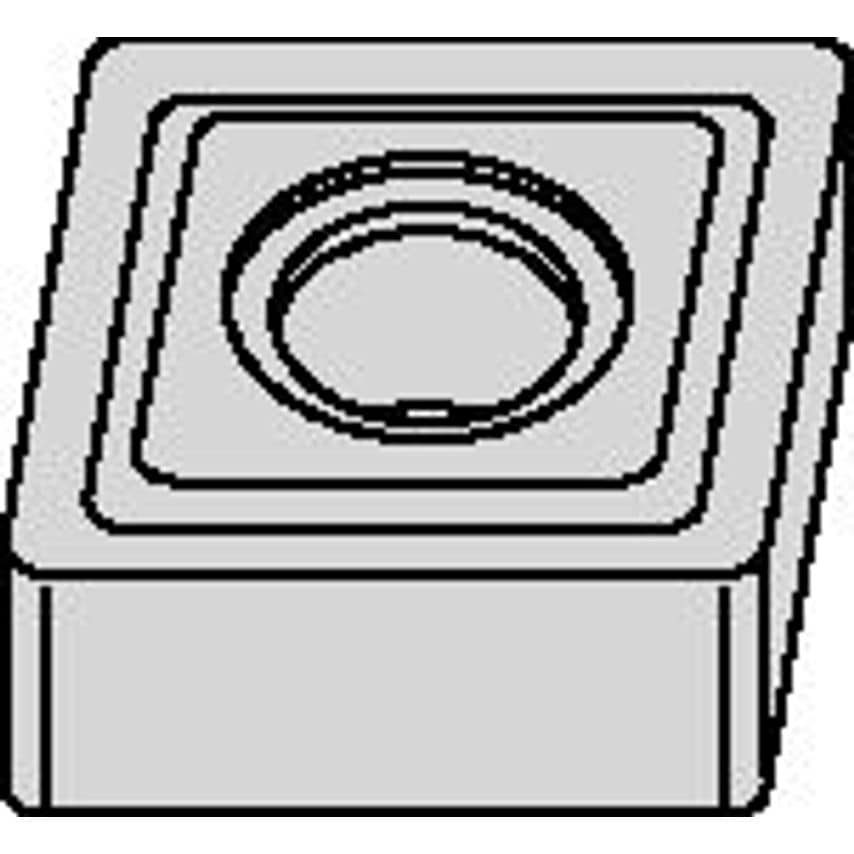

CNMG190616 ANSI/ISO Turning Insert CN.. by Kennametal
| Insert Size | 190616 |
| Insert Style | CNMG |
| Material | Carbide |
| Product Type | Turning Inserts |
| Thickness | 6.35mm |
| Corner Radius | 1.6 |
| Finish/Coating | TiC/TiCN/TiN |
| Inscribed Circle | 19.05mm |
| ISO Category Grade | M | P |
| ISO Designation | CNMG 190616 |
| ISO Category | M | P |
| Manufacturer Grade | KC850 |
| MFR Part No. | 1160201 |
| Cutting Edge Length | 19.3mm |
| Shape | 80\u00b0 Rhombic |
| ISO Cut | M25 to M45 | P25 to P45 |
| Material Application | Stainless Steels | Steels |
