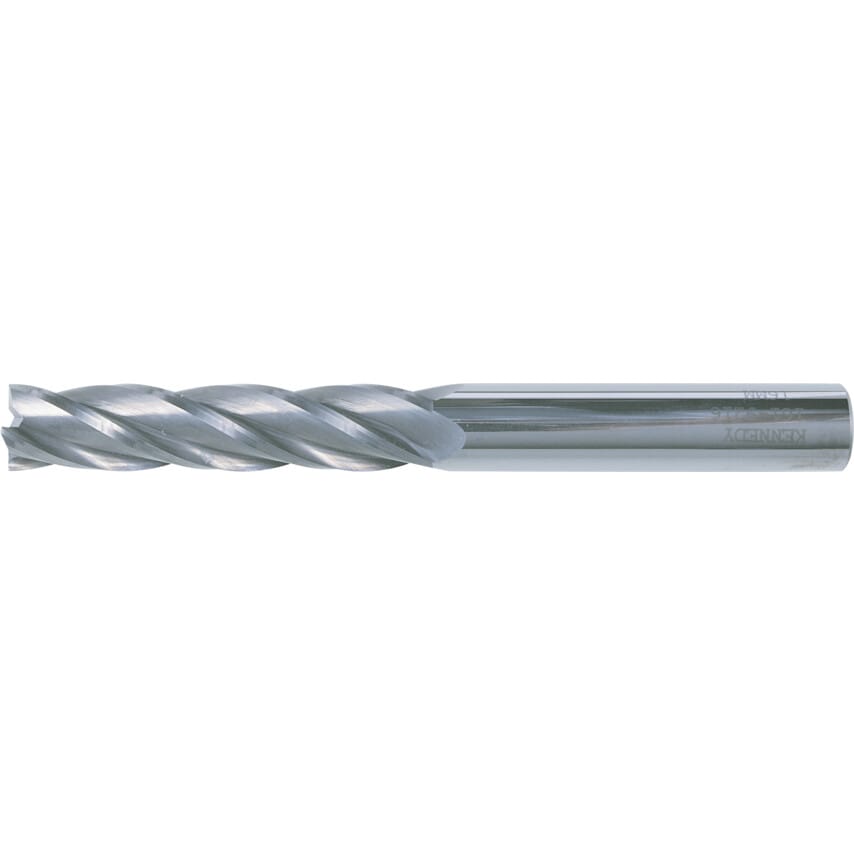

Long Series- 4 Flute - Inch
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Cutter Style | Square End |
| Shank Diameter | 1/4in |
| Number of Flutes | 4 |
| Coolant Delivery | External |
| Shank Type | Plain Round |
| Cutting Direction | Right Hand |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 1/4in |
| System of Measurement | Inch |
| Standards Met | USCTi |
| Finish/Coating | Uncoated |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
| Flute Length | 1-1/8in |
| Overall Length | 3in |
| Length Type | Long |
| Material | Carbide |
| Product Type | End Mills |
| Cutter Diameter Tolerance | H10 |
