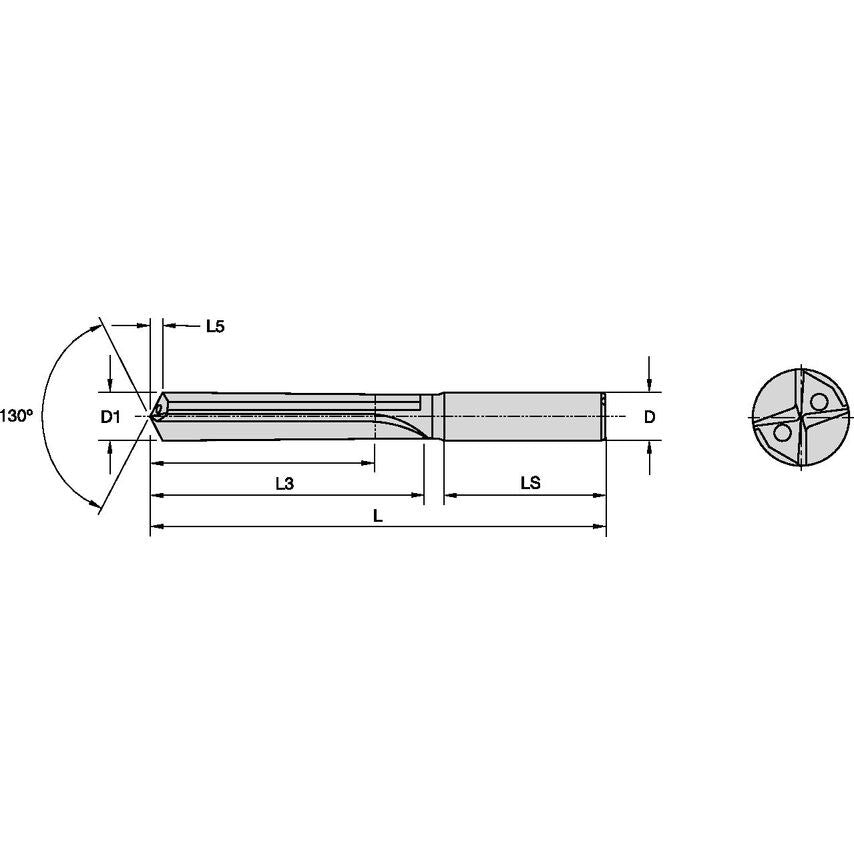

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Overall Length | 133mm | 133.0000mm |
| Drill Diameter | 14.5000mm |
| Flute Construction | Straight Flute |
| Clamping Length | 43mm |
| Drill Diameter Tolerance | 0.001000 to 0.012000mm |
| Assembly Length | 86.619mm |
| Flute Length | 83mm | 83.0000mm |
| Material | Carbide |
| Shank Length | 48.0000mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Functional Length | 129.6190mm |
| Unit Measured | Metric |
| Coolant Delivery | Off-center Axial Coolant |
| Hand Preference | Right |
| Primary Material | Cast Iron |
| Gage Length | 85mm |
| Adapter Style | Straight-Cylindrical |
| Drill Point | 3.381mm |
| Drill Depth | 63mm | 63.0000mm |
| MFR Part No. | 1198679 |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Helix Angle | 0.000 |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
