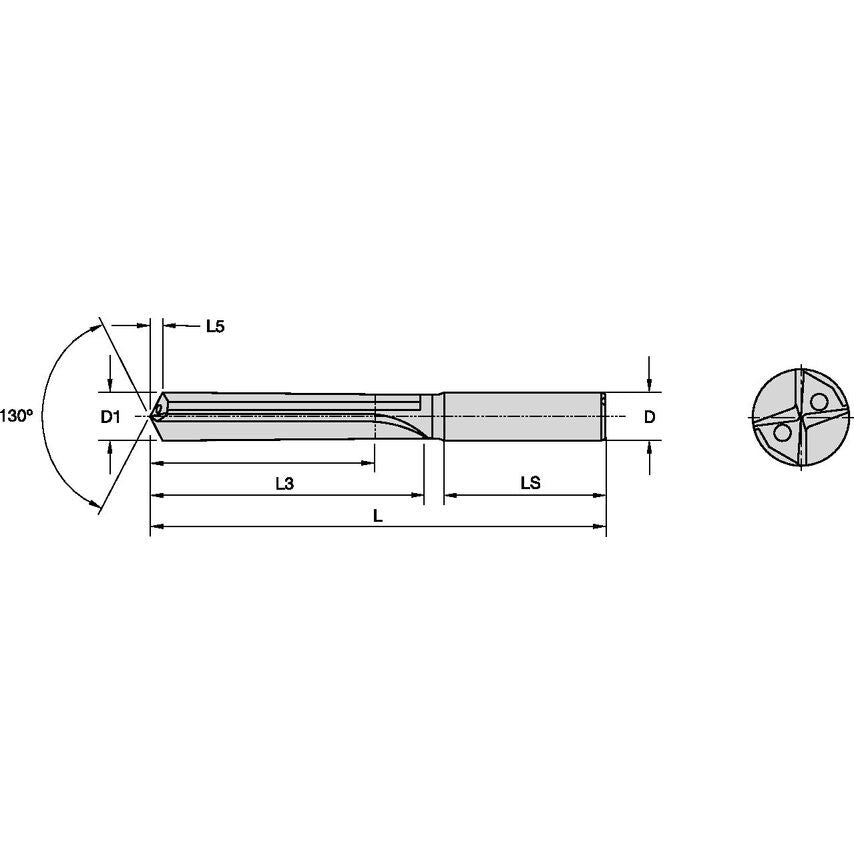

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Shank Length | 48.0000mm |
| Gage Length | 95mm |
| Flute Construction | Straight Flute |
| Overall Length | 143mm | 143.0000mm |
| Functional Length | 139.1530mm |
| MFR Part No. | 1198691 |
| Coolant Supplied | Yes |
| Coolant Delivery | Off-center Axial Coolant |
| Unit Measured | Metric |
| Drill Depth | 71mm | 71.0000mm |
| Hand Preference | Right |
| Assembly Length | 91.153mm |
| Flute Length | 93mm | 93.0000mm |
| Drill Point | 3.847mm |
| Helix Angle | 0.000 |
| Drill Diameter | 16.5000mm |
| Primary Material | Cast Iron |
| Drill Diameter Tolerance | 0.001000 to 0.012000mm |
| Clamping Length | 48mm |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
