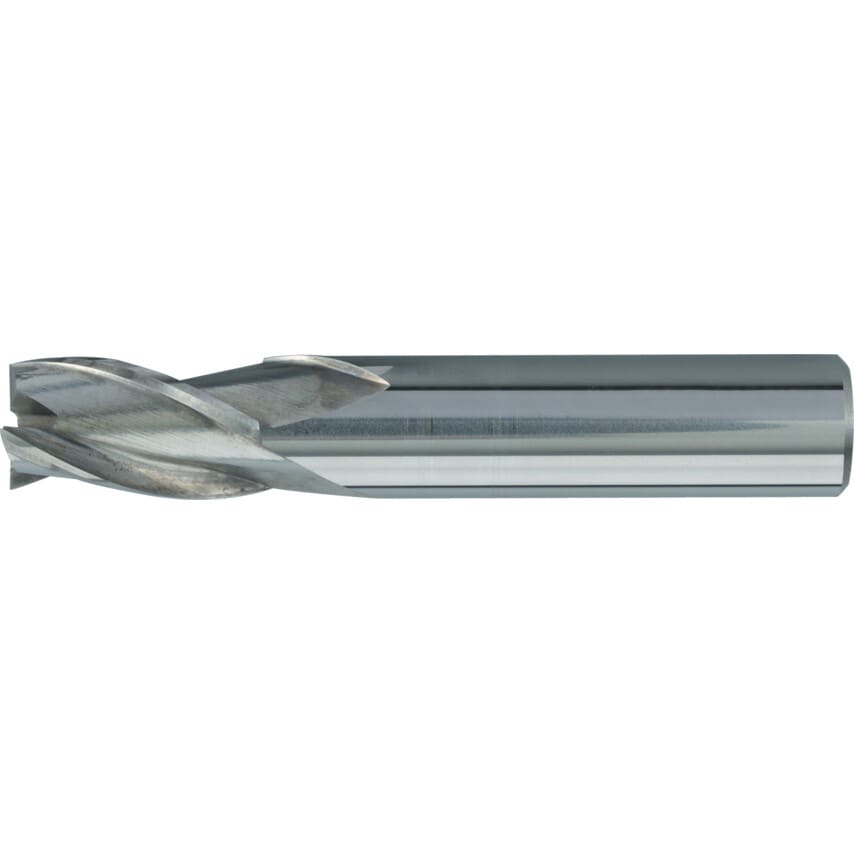

Series 48 - 3 Flute - Short Series, TiCN Coated
Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| Material | Carbide |
| System of Measurement | Metric |
| Standards Met | DIN 6535 HA |
| Overall Length | 40.0mm |
| Number of Flutes | 3 |
| Length Type | Short |
| Finish/Coating | TiCN |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 4.0mm |
| Product Type | Slot Drills |
| Cutter Style | Square End |
| Flute Type | Helical |
| Series | Series 48 |
| Shank Type | Plain Round |
| Flute Length | 4.5mm |
| Cutter Diameter | 1.5mm |
