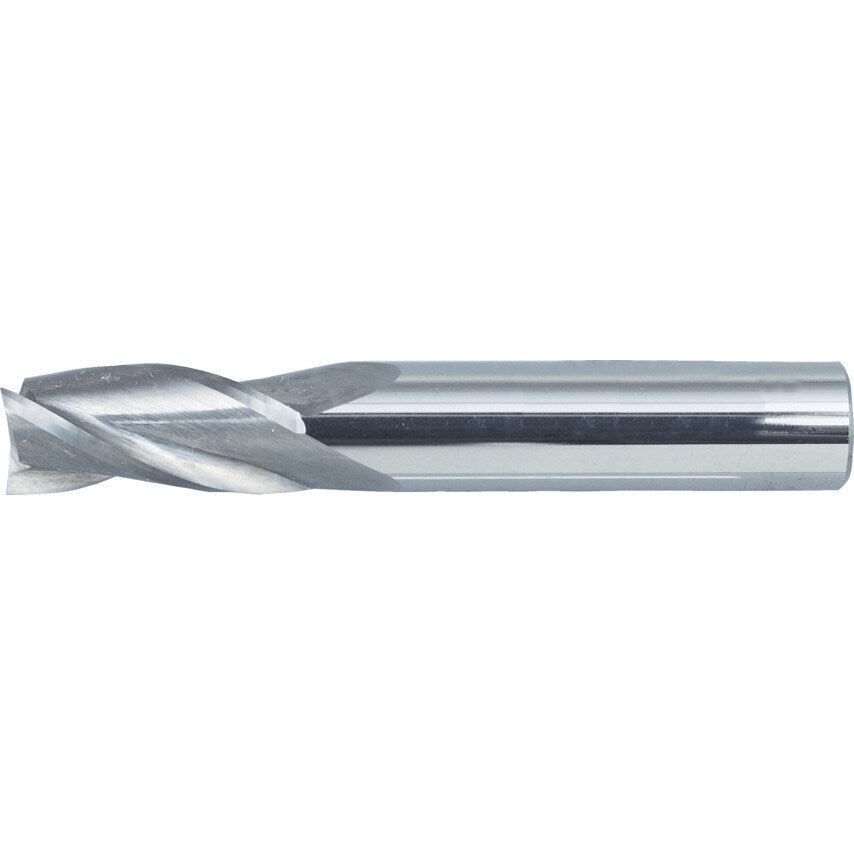

3 Flute: Regular Series - Metric
Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Coolant Delivery | External |
| Cutter Diameter | 1.0mm |
| Helix Angle | 30\u00b0 |
| Cutting Direction | Right Hand |
| Overall Length | 40.0mm |
| Shank Type | Plain Round |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Cutter Diameter Tolerance | H10 |
| Flute Length | 3.0mm |
| Number of Flutes | 3 |
| Shank Diameter | 4.0mm |
| Cutter Style | Square End |
| Material | Carbide |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Flute Type | Helical |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
