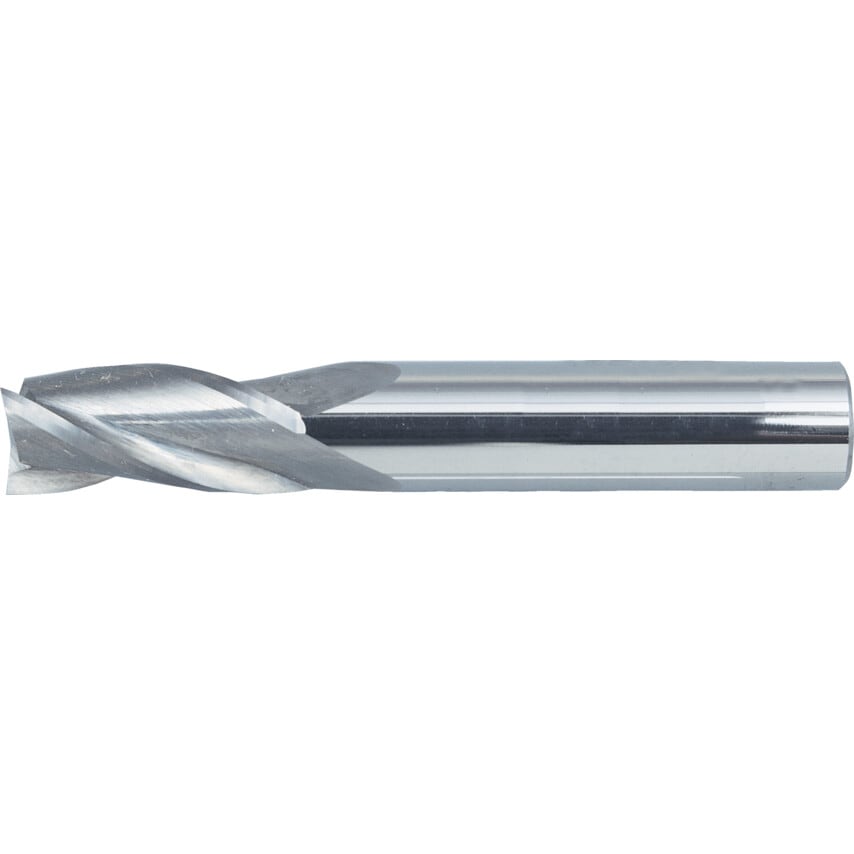

3 Flute: Regular Series - Inch
Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Coolant Delivery | External |
| Flute Length | 1in |
| Cutter Diameter | 1/2in |
| Product Type | Carbide Slot Drill |
| System of Measurement | Inch |
| Cutter Diameter Tolerance | H10 |
| Plunge Type | Centre Cutting |
| Length Type | Regular |
| Cutter Style | Square End |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Finish/Coating | Uncoated |
| Shank Diameter | 1/2in |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Helix Angle | 30\u00b0 |
| Material | Carbide |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | Slot Drill |
| Overall Length | 3in |
