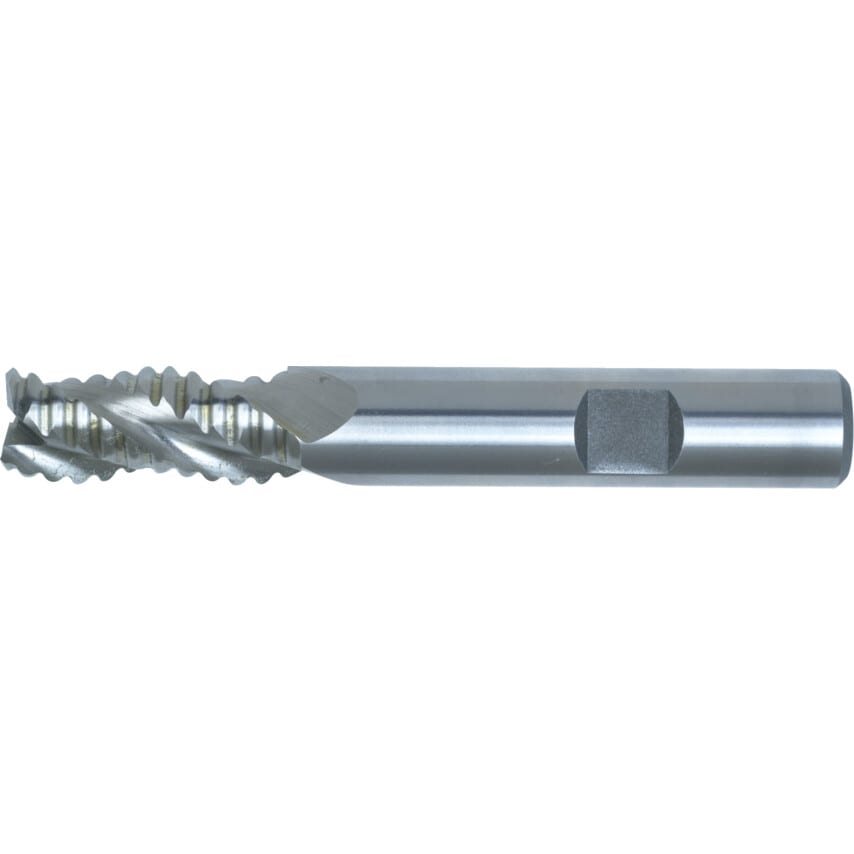

Series 20 - Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.
Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Length | 13.0mm |
| Cutter Diameter | 6.0mm |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Material Grade | M42 |
| Shank Diameter | 6.0mm |
| Plunge Type | Centre Cutting |
| Overall Length | 57.0mm |
| Length Type | Regular |
| Material Application | Aluminium |
| Coolant Delivery | External |
| Milling Application | High-feed Milling | Roughing |
| Helix Angle | 37\u00b0 |
| Cutter Style | Special Geometry Cutters |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Milling Cutter Type | End Mills |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
