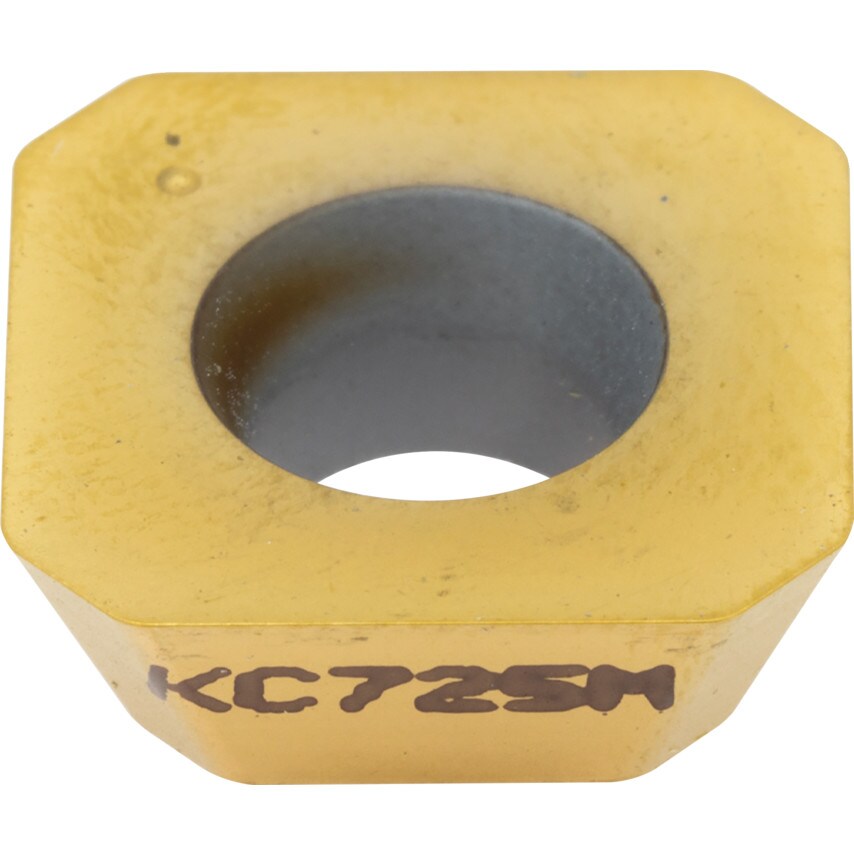

SEHW 1204AFN
Grade KC725M
(ISO M15-M35, P15-P35, K15-35) A Multi-layer PVD coating with a tough 11.5% cobalt substrate. General purpose medium-speed grade for steels. good resistance to thermal shock. Suitable for wet and dry machining applications. Speed range: 300 - 650 SFM on steel materials; 200 - 500 SFM on stainless steel materials.
| Clearance Angle | 20\u00b0 |
| ISO Cut | K15 to K39 |
| Thickness | 4.76mm |
| Inscribed Circle | 12.70mm |
| Product Type | Insert Grade KC725M |
| Cutting Edge Length | 12.70mm |
| Pack Quantity | 1 |
| Finish/Coating | TiAlN |
| ISO Category Grade | K |
| Material Application | Cast Steel |
| Insert Style | SEHW |
| Material | Carbide |
| Insert Size | 1204 |
| Manufacturer Grade | KC725M |
| Shape | Square |
| Cutting Direction | Neutral |
| ISO Designation | SEHW 1204AFN |
| Corner Radius | 1.00mm |
