IC3028 (ISO P25-P45 M15-M35 S20-S30)
A TiN/TiCN PVD toughest coated grade. Interrupted cutting and high resistance to
mechanical and thermal shock. Low speed, high feed. Suitable for use on carbon, alloy and stainless steels.Used for turning stainless steel and high temperature alloys at low to medium cutting speeds. Used for interrupted cuts and very heavy turning operations.
| Thickness | 3.76mm |
| Cutting Direction | Neutral |
| Manufacturer Grade | IC328 |
| Insert Size | 1003 |
| Clearance Angle | 11\u00b0 |
| Insert Style | APKR |
| Material Application | High-Temperature Alloys | Stainless Steels | Steels |
| Cutting Edge Length | 11.2mm |
| Pack Quantity | 1 |
| ISO Category Grade | M | P | S |
| Shape | 85\u00b0 Parallelogram |

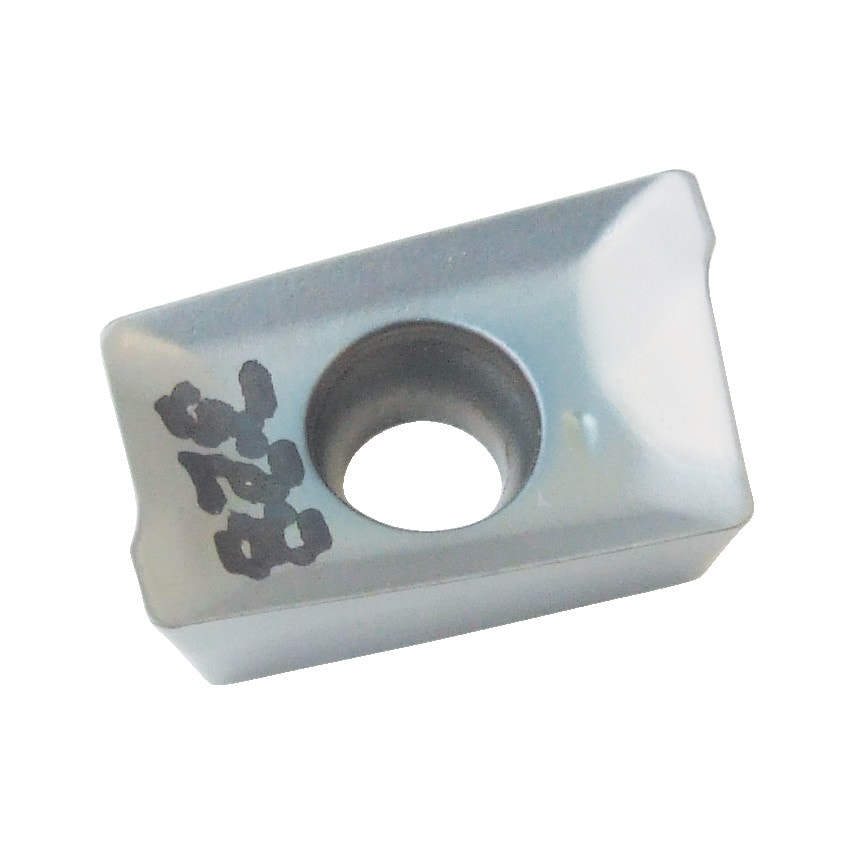

| ISO Designation | APKR 1003PDR-HM |
| Corner Radius | 0.5mm |
| Material | Carbide |
| Chipbreaker | HM |
| Finish/Coating | TiCN |
| ISO Cut | M30 to M40 | P25 to P40 | S20 to S30 |
