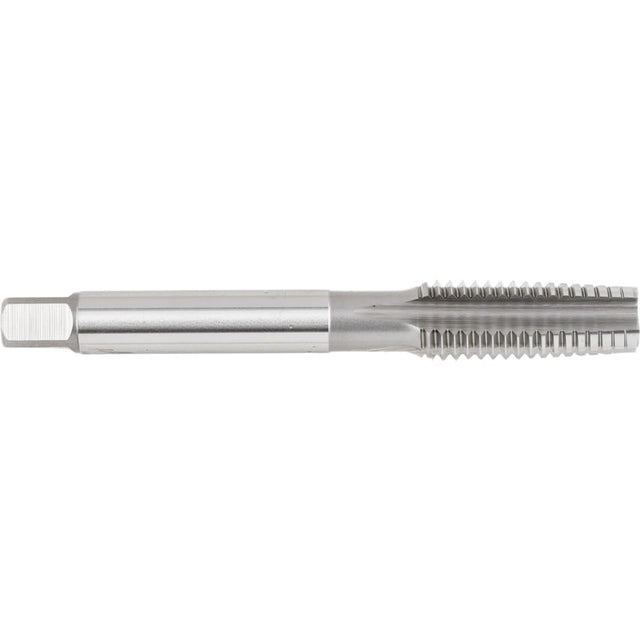

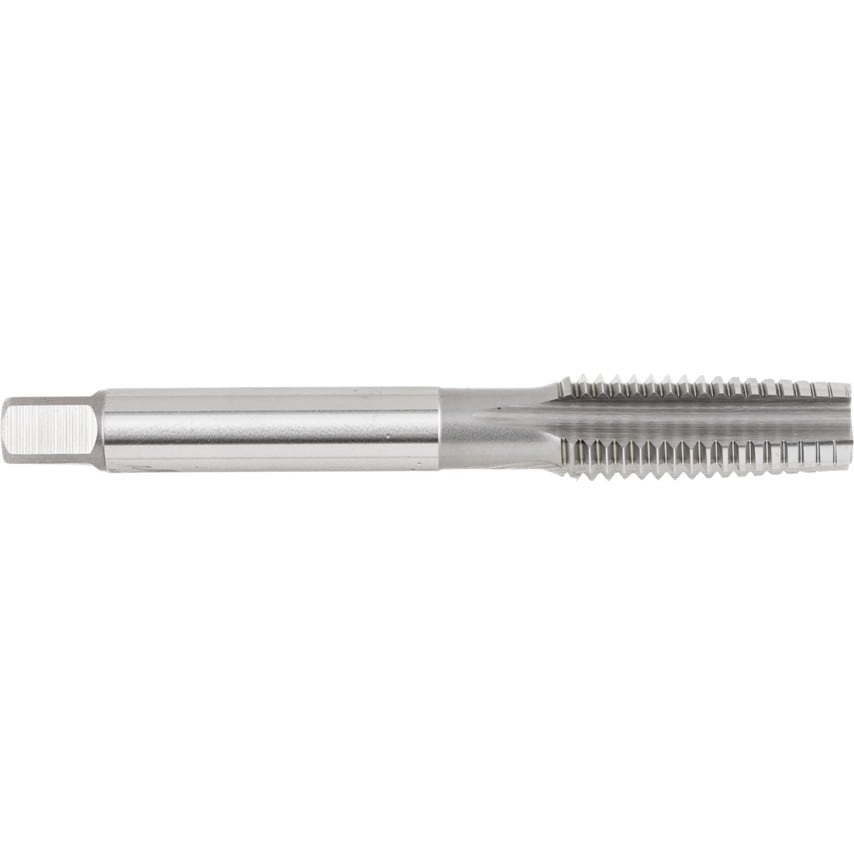

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish.
Features and Benefits
Manufactured from durable high speed steel
Precision ground flutes for accurate thread cutting
Tapered chamfer for applications where cutting through is required
Features class 2 thread forms with medium fit tolerance
Manufactured with a bright finish
Typical Applications
Tapping
Steel
Brass
Aluminium
Engineering
Manufacturing
Standards
Tap dimensions to ISO529
Thread Forms are Class 2 medium fit tolerance
Straight Flute Individual Sizes IS0 529
Notes
Available in sizes 1.0 x 0.25mm - 56 x 5.50mm
(1) Diameter and pitch not mentioned in ISO
| Thread Standard | Metric Coarse |
| Material Grade | M2 |
| Product Type | Taper Tap |
| Number of Flutes | 4 |
| Tap Type | Straight Flute |
| Thread Length | 23mm |
| Thread Direction | Right Hand |
| Pitch | 1.75 |
| Square Width | 7.1mm |
| Chamfer | Taper |
| Thread Size | M12 |
| Dimensions Standard | ISO 529 |
| Material | HSS |
| ISO Category | K | M | N | P |
| Overall Length | 89mm |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Finish/Coating | Bright |
| Shank Diameter | 9mm |
| Class of Fit | 6H |
