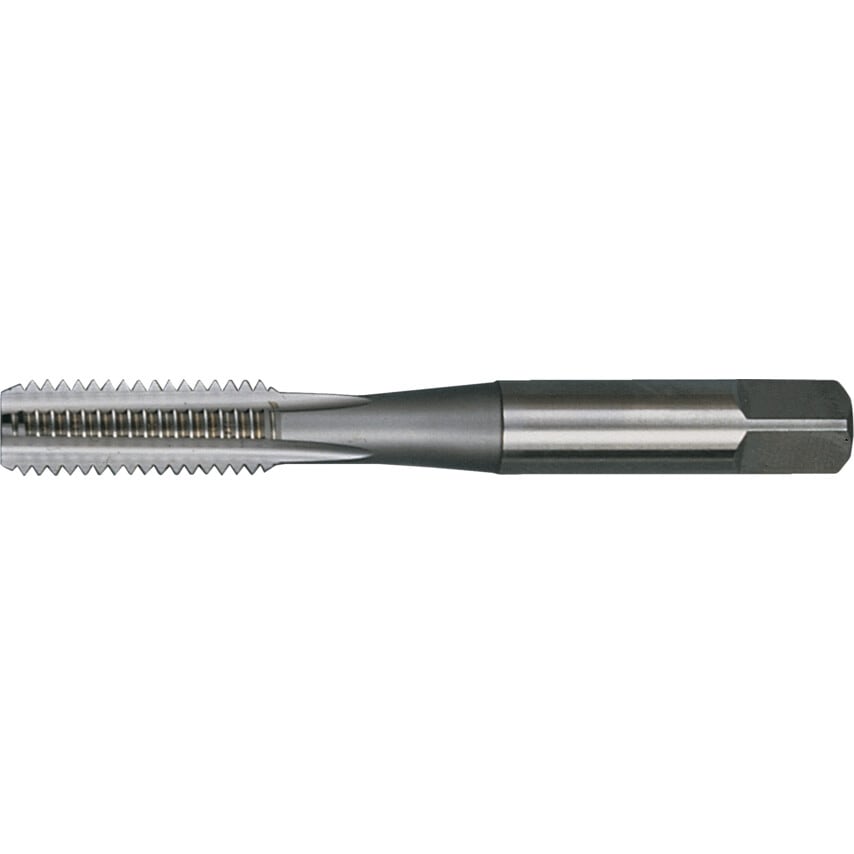

Sherwood HSS Plug Taps are the ideal option for through hole tapping in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish.
Features and Benefits
Manufactured from durable high speed steel
Precision ground flutes for accurate thread cutting
Features class 2 thread forms with medium fit tolerance
Manufactured with a bright finish
Ideal for through hole tapping applications
Typical Applications
Through hole tapping
Tapping
Steel
Brass
Aluminium
Engineering
Manufacturing
Standards
Tap dimensions to ISO529
Thread Forms are Class 2 medium fit tolerance
Straight Flute Individual Sizes IS0 529
Notes
Available in sizes 1.0 x 0.25mm - 48 x 5.00mm
(1) Diameter and pitch not mentioned in ISO
| Material | HSS |
| Dimensions Standard | ISO 529 |
| Square Width | 2mm |
| Number of Flutes | 3 |
| ISO Category | K | M | N | P |
| Chamfer | Plug |
| Overall Length | 41mm |
| Pitch | 0.35 |
| Shank Diameter | 2.5mm |
| Tap Type | Straight Flute |
| Thread Length | 8mm |
| Product Type | Plug tap |
| Class of Fit | 6H |
| Thread Size | M1.6 |
| Finish/Coating | Bright |
| Material Grade | M2 |
| Thread Standard | Metric Coarse |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Thread Direction | Right Hand |
