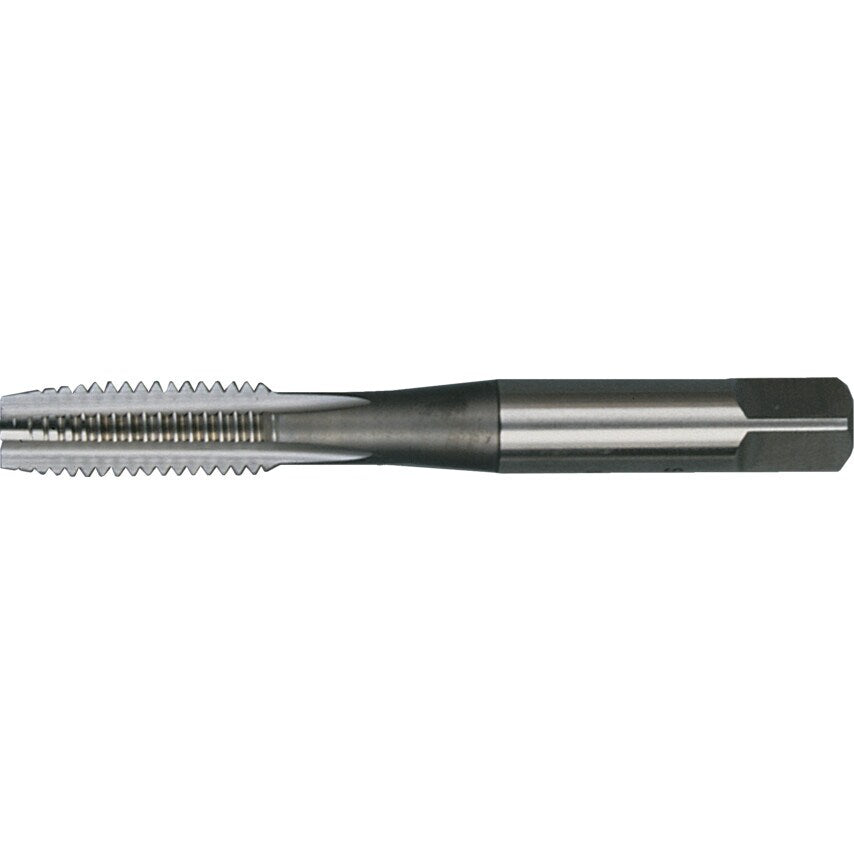

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish.
Features and Benefits
High speed steel construction for added tool hardness
Manufactured with precision ground flutes for accurate thread forms
Excellent heat and wear resistance for prolonged tool lifespan
Typical Applications
Tapping
Standards
Tap dimensions to ISO529
| Material Grade | M2 |
| Thread Length | 48.0mm |
| Finish/Coating | Bright |
| Square Width | 16.0mm |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Pitch | 7 |
| Dimensions Standard | ISO 529 |
| Shank Diameter | 20.0mm |
| Product Type | Plug tap |
| Teeth per Inch | 7 |
| Overall Length | 138.0mm |
| Thread Size | 01/01/2008in |
| Thread Standard | UNC |
| Material | HSS |
| Class of Fit | 2B |
| Tap Type | Straight Flute |
