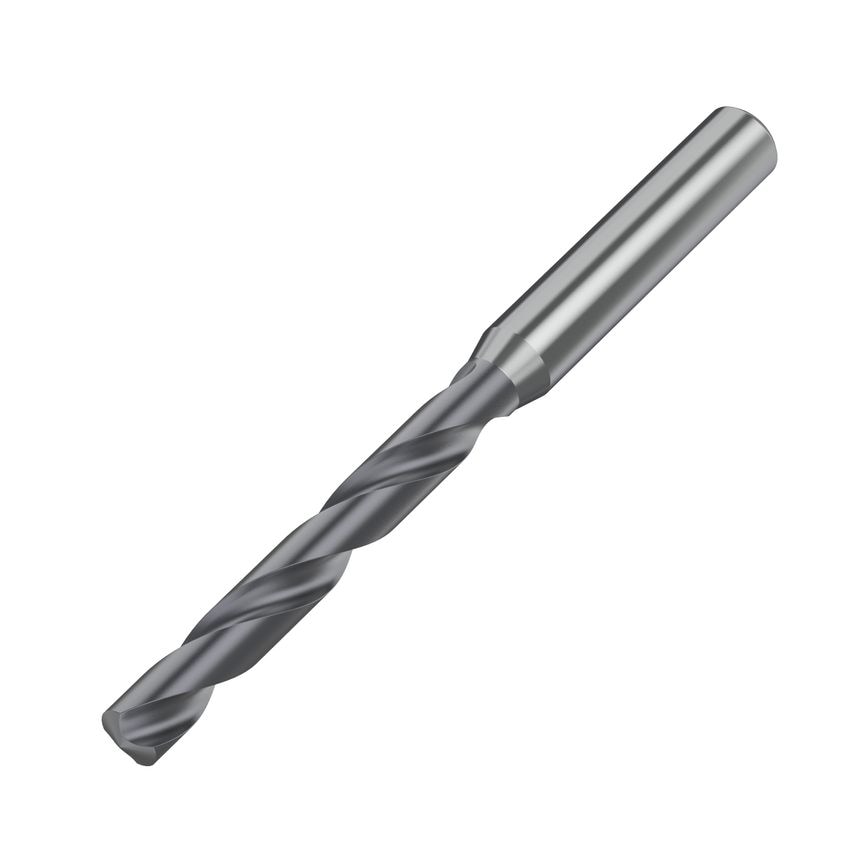

Kenna Universal Drills With Through Coolant
Solid Carbide Drills
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Number of Flutes | 2 |
| Drill Diameter | 9.7000mm |
| Shank Length | 40.0000mm |
| Functional Length | 87.3460mm |
| Drill Point | 1.654mm |
| Coolant Delivery | Off-center Axial Coolant |
| Clamping Length | 40mm |
| Helix Angle | 29.437 |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Material | Carbide |
| Drill Depth | 35mm | 35.0000mm |
| Shank Diameter | 9.7mm |
| Unit Measured | Metric |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 89mm | 89.0000mm |
| Assembly Length | 47.346mm |
| Flute Length | 47mm | 47.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| MFR Part No. | 1961106 |
| Primary Material | Steel |
| Finish/Coating | TiAlN |
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
