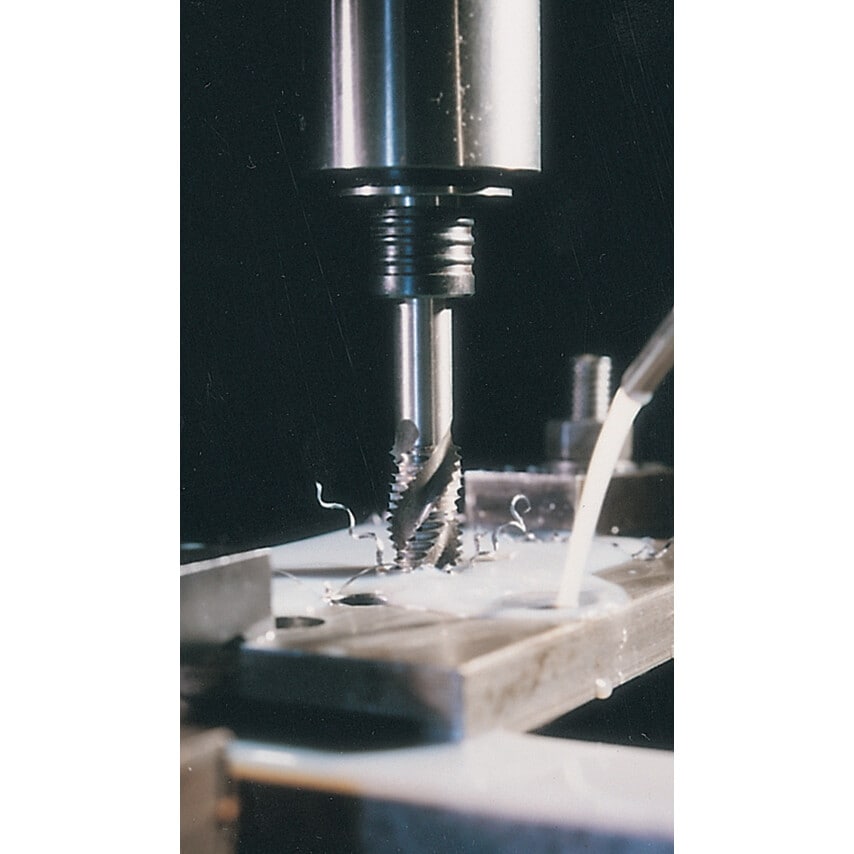

IS0 529 - Spiral Point/Gun Nose
| Shank Diameter | 6.3mm |
| Pitch | 20 |
| Overall Length | 66.0mm |
| Material Grade | M2 |
| Finish/Coating | Steam Tempered |
| Number of Flutes | 3 |
| Thread Standard | BSW |
| Thread Size | 1/4in |
| Class of Fit | 6H |
| Tap Type | Spiral Point |
| Square Width | 5.0mm |
| Thread Direction | Right Hand |
| Dimensions Standard | ISO 529 |
| Teeth per Inch | 20 |
| Material | HSS |
| Thread Length | 19.0mm |
