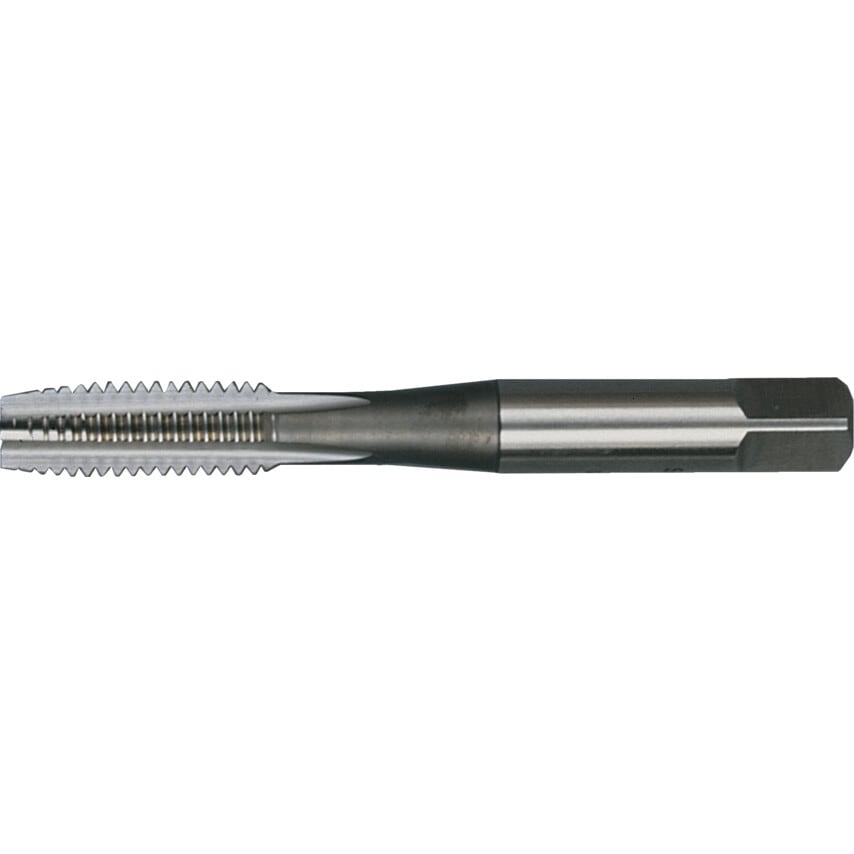

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.
Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results, dissipating the heat build-up associated with these applications.
Features and Benefits
High-speed steel and cobalt construction for added hardness
Excellent heat and wear resistance
Class 2 thread forms / medium fit tolerance
Precision ground flutes for added precision
Typical Applications
Tapping
Standards
Tap dimensions to ISO529
| Compatible Materials | Aluminium | Brass | Cast Iron | Nonferrous Metals | Steel |
| Tap Type | Straight Flute |
| Chamfer | Second |
| Material Grade | M2 |
| Thread Direction | Right Hand |
| Square Width | 28mm |
| ISO Category | K | M | N | P |
| Pitch | 11 |
| Number of Flutes | 4 |
| Finish/Coating | Bright |
| Lead | Second |
| Thread Length | 37.0mm |
| Material | HSS |
| Teeth per Inch | 11 |
| Shank Diameter | 35.5mm |
| Thread Standard | BSPF |
| Thread Size | 01/01/2002in |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Class of Fit | 2B |
| Overall Length | 125.0mm |
| Dimensions Standard | ISO 529 |
