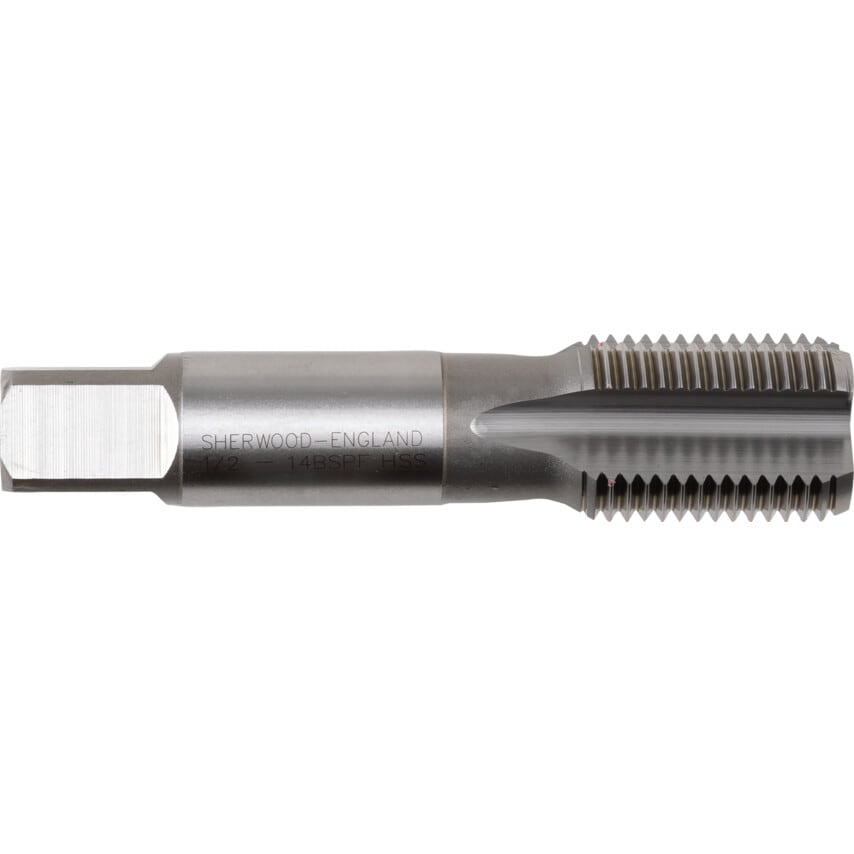

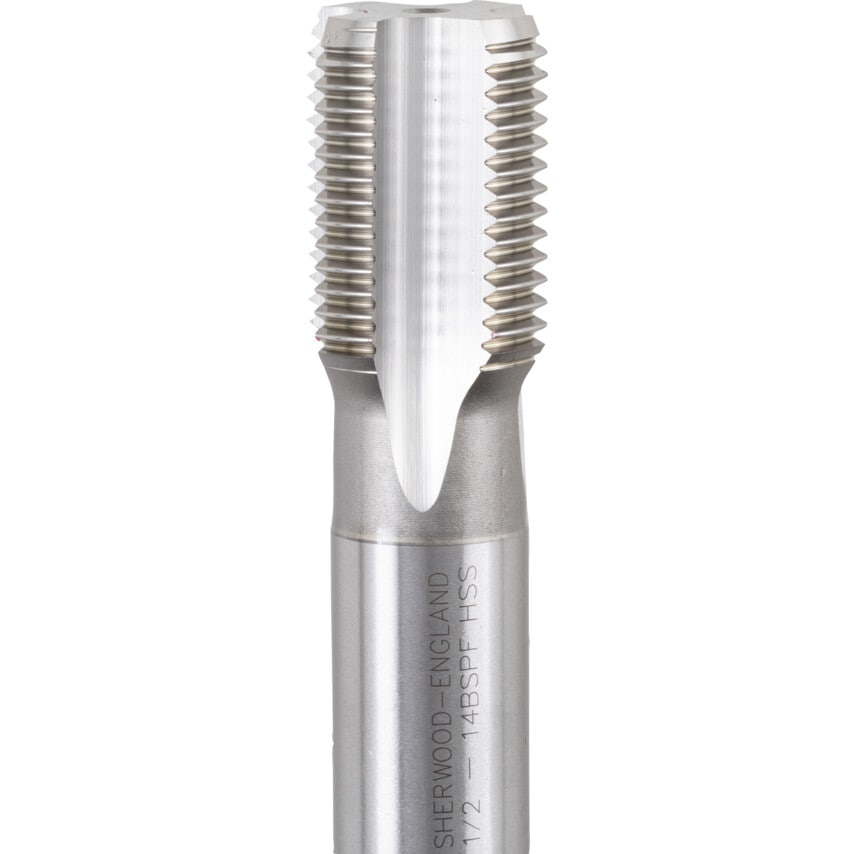

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate class 2 thread forms, with a medium fit tolerance. Sherwood Tap dimensions conform to ISO529
Features and Benefits
High speed steel construction for increased tool durability
Class 2 thread forms / medium fit tolerance
Precision ground flutes for increased cutting accuracy
Bright finish with excellent wear resistance for prolonged tool life
Standards
Tap dimensions to ISO529
| Tap Type | Straight Flute |
| Square Width | 12.5mm |
| Thread Size | 1/2in |
| Material | HSS |
| Thread Standard | BSPT |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Finish/Coating | Bright |
| Pitch | 14 |
| Lead | Plug |
| Number of Flutes | 4 |
| Material Grade | M2 |
| ISO Category | K | M | N | P |
| Chamfer | Plug |
| Class of Fit | 2B |
| Teeth per Inch | 14 |
| Overall Length | 87.0mm |
| Compatible Materials | Aluminium | Brass | Cast Iron | Nonferrous Metals | Steel |
| Thread Direction | Right Hand |
| Shank Diameter | 16.0mm |
| Thread Length | 26.0mm |
| Dimensions Standard | ISO 529 |
