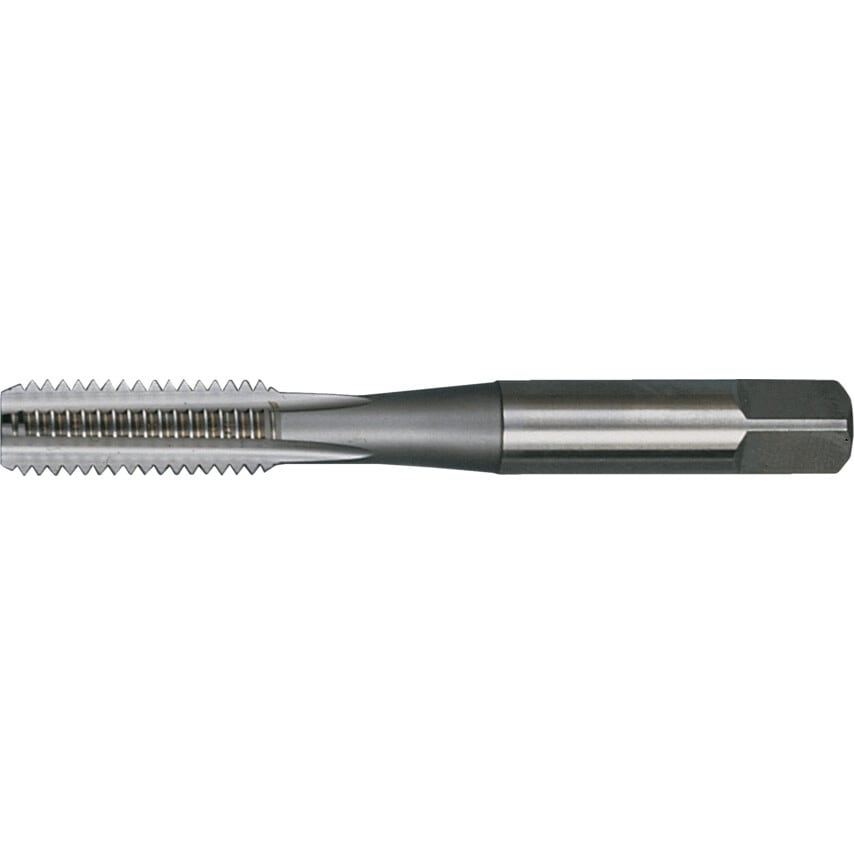

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate class 2 thread forms, with a medium fit tolerance. Sherwood Tap dimensions conform to ANSI 94.9.
Features and Benefits
High speed steel construction for increased tool durability
Class 2 thread forms / medium fit tolerance
Precision ground flutes for increased cutting accuracy
Bright finish with excellent wear resistance for prolonged tool life
Standards
ANSI 94.9
| Thread Length | 44.5mm |
| Shank Diameter | 28.5mm |
| Teeth per Inch | 11.5 |
| Overall Length | 95.3mm |
| Number of Flutes | 4 |
| Thread Standard | NPT |
| Dimensions Standard | ANSI 94.9 |
| Material Grade | M2 |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Threading Tap Type | Hand Tap |
| Finish/Coating | Bright |
| Chamfer | Plug |
| Material | HSS |
| Thread Direction | Right Hand |
| Tap Type | Straight Flute |
| Square Width | 25mm |
| ISO Category | K | M | N | P |
| Thread Size | 1in. x 11.5 |
