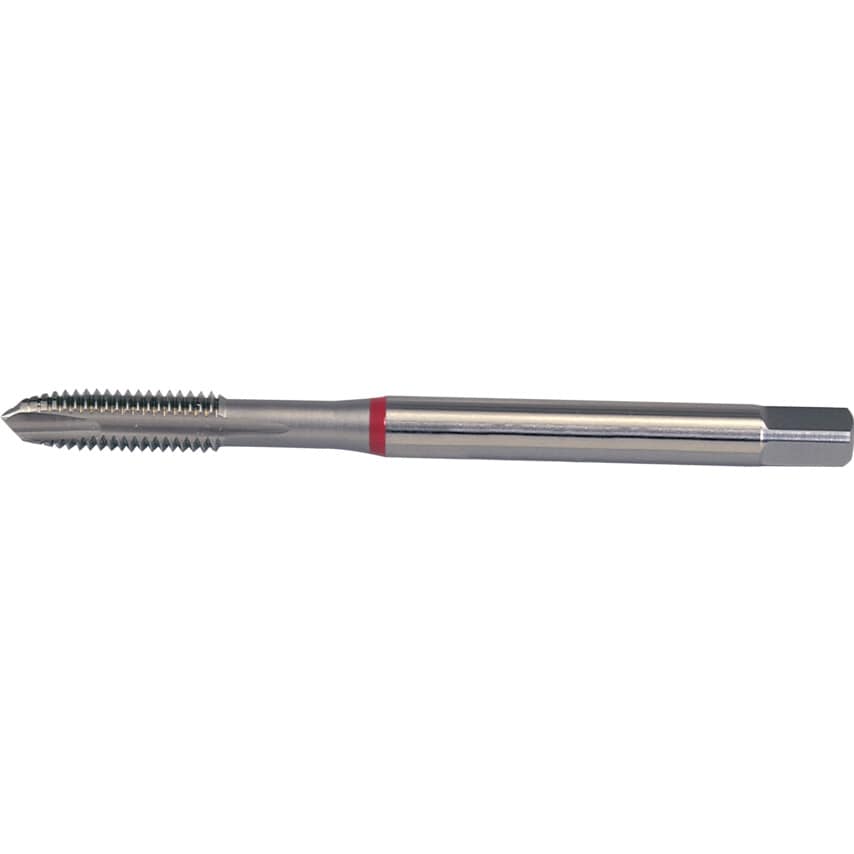

Spiral Point/Gun Nose - ISO Metric Coarse
HSS-Co Bright Finish. For through holes. Taper lead to DIN form B (3.5 x P to 5.5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.
| Thread Standard | Metric Coarse |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Bright |
| Shank Diameter | 6mm |
| Square Width | 4.9mm |
| Dimensions Standard | DIN 371 |
| Thread Length | 19mm |
| Pitch | 1 |
| Class of Fit | 6HX |
| Coolant Delivery | External |
| Ring Colour | Red |
| Material Application | Alloy Steel |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Thread Size | M6 |
| Material Grade | M42 |
| Overall Length | 80mm |
| Tap Type | Spiral Point |
