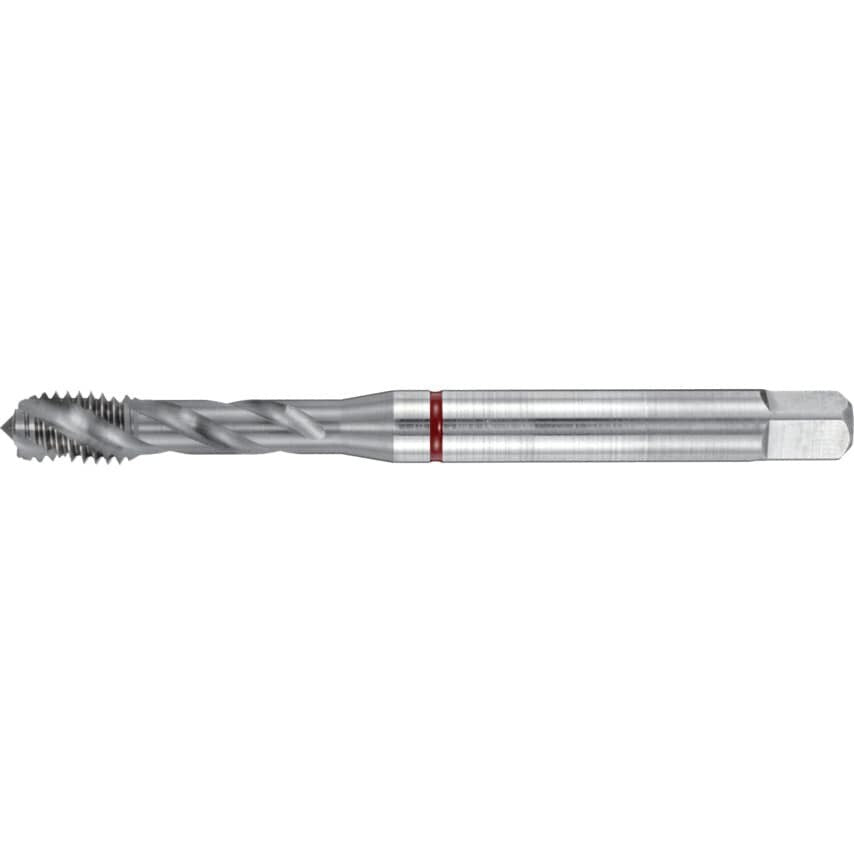

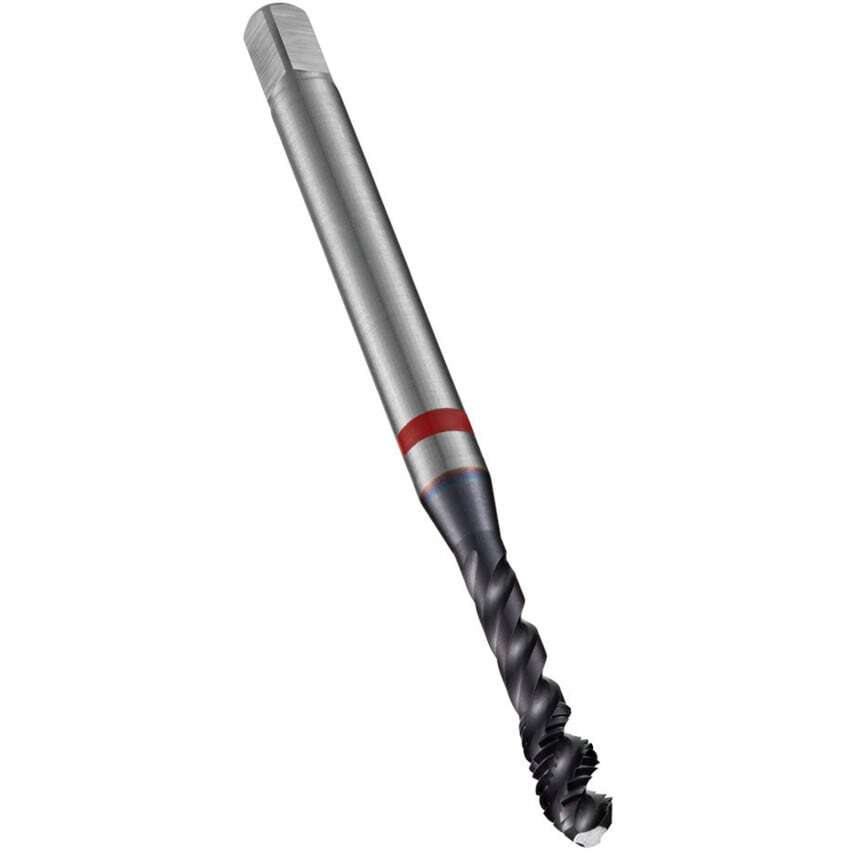

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE261 - TiALN
| Applications | P - Steel and cast steel |
| Finish/Coating | TiAlN |
| Tapping Depth | 18mm |
| Thread Direction | Right Hnd |
| Thread Form | M - Metric coarse |
| Overall Length | 56mm |
| Standards | DIN 371 |
| Shank | Cylindrical Shank with Square |
| Finish | TiAlN/Top |
| Material | HSS-E-PM |
| Tap Application | Blind Hole |
| Thread Standard | Metric Coarse |
| Class of Fit | 6H |
| Square Width | 2.7mm |
| Thread Length | 9mm |
| MFR Part No. | E261M3 |
| Number of Flutes | 3 |
| Unit of Measurement | Metric |
| Material Grade | M35 |
| Product Type | Machine Taps |
| Tap Chamfer Style | C 2 - 3 |
| Series | E261 |
| Application | Steel and Cast Steel |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Lead | C 2-3 |
| Tap Type | Spiral Flute |
| Shank Diameter | 3.5mm |
| Cutting Direction | Right |
| Helix Angle | 45\u00b0 |
| Dimensions Standard | DIN 371 |
| Thread Size | M3 |
| Product Series | E261 |
| Pitch | 0.5mm |
