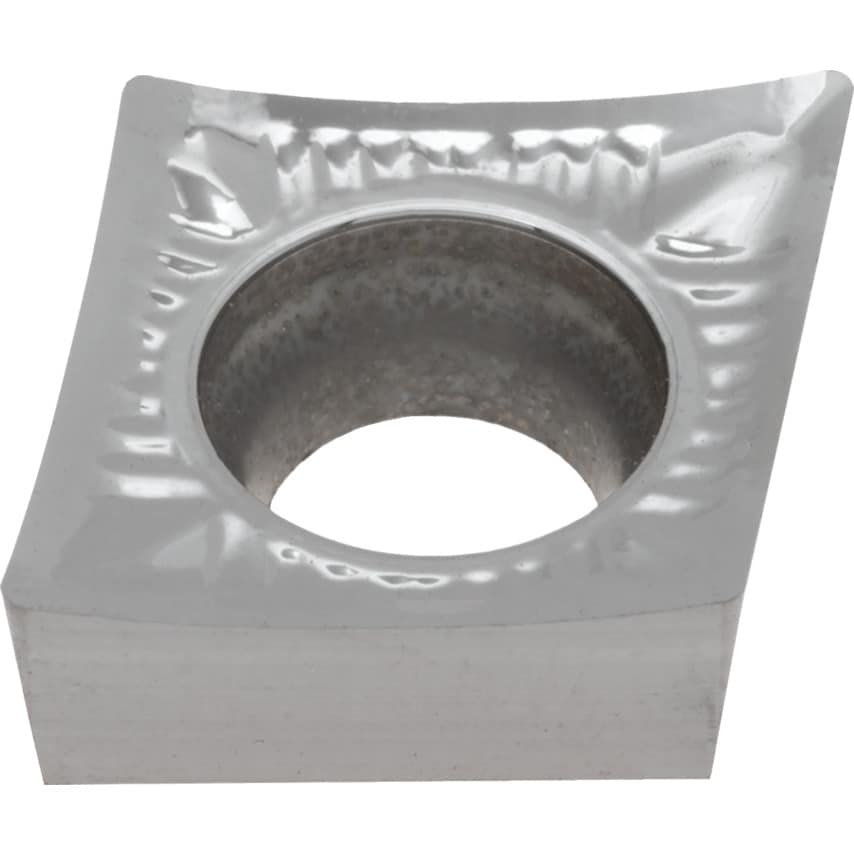

CCGT Turning Inserts
80 Rhombic Insert
Insert Grade K10
(ISO K10) Uncoated. Used in combination with a high rake geometry for machining Cast Irons,Aluminium, Plastics and other soft Non-Ferrous materials.
Chip Breaker: AL. Application: Med Cut.
| Material Application | Cast Iron | Nonferrous Metals | Nonferrous Metals |
| MFR Part No. | 1-03-000329 |
| Material | Carbide |
| Clearance Angle | 7\u00b0 |
| ISO Category Grade | K |
| ISO Cut | K05 to K20 |
| Shape | 80\u00b0 Rhombic |
| Cutting Direction | Neutral |
| Manufacturer Grade | K10 |
| Corner Radius | 0.4 |
| ISO Category | K |
| Pack Quantity | 10 |
| Inscribed Circle | 9.525mm |
| Thickness | 3.97mm |
| Insert Size | 09T304 |
| ISO Designation | CCGT 09T304-AL |
| Finish/Coating | Uncoated |
| Chipbreaker | AL |
| Cutting Edge Length | 9mm |
| Insert Style | CCGT |
