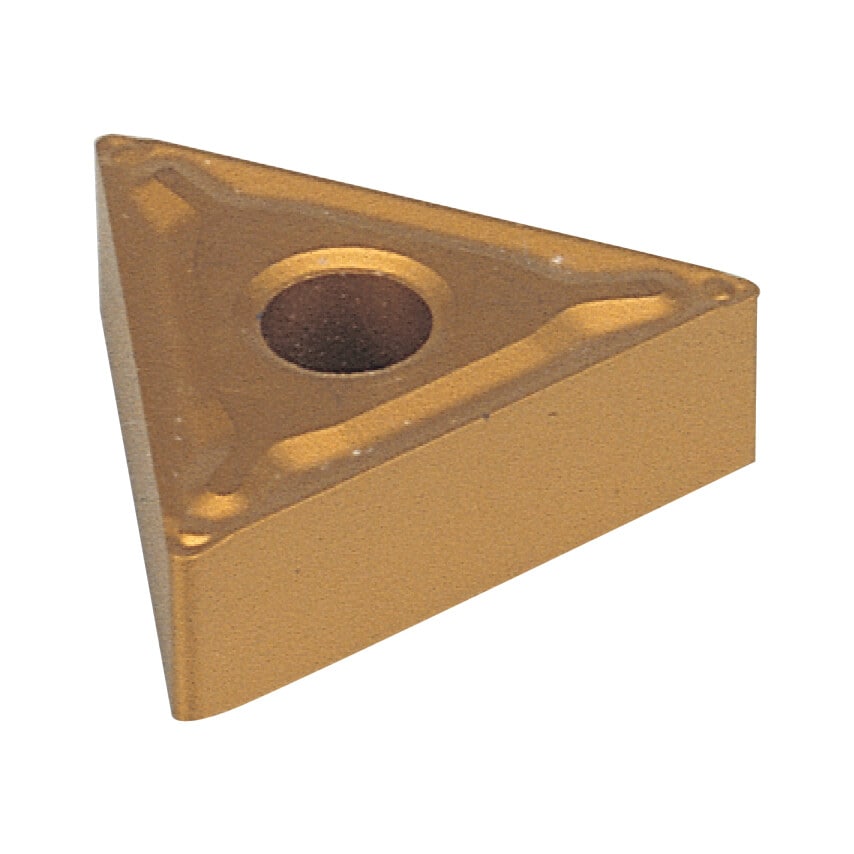

TNMG Turning Inserts
60 Trianglar Insert
Insert Grade QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: NM6. Application: Med Cut.
| Manufacturer Grade | QX5030 |
| Thickness | 4.76mm |
| Pack Quantity | 10 |
| Clearance Angle | 0\u00b0 |
| ISO Category | M | P |
| ISO Category Grade | M | P |
| Material | Carbide |
| Insert Size | 160404 |
| Chipbreaker | NM6 |
| Inscribed Circle | 9.525mm |
| MFR Part No. | 1-02-025302 |
| Cutting Edge Length | 16.5mm |
| Shape | Triangle |
| ISO Designation | TNMG 160404-NM6 |
| Insert Style | TNMG |
| Cutting Direction | Neutral |
| Corner Radius | 0.4 |
| Material Application | Stainless Steels | Steels |
| ISO Cut | M20 to M30 | P20 to P40 |
| Finish/Coating | MT-TiCN + TiC + AL2O3 + TiN) |
