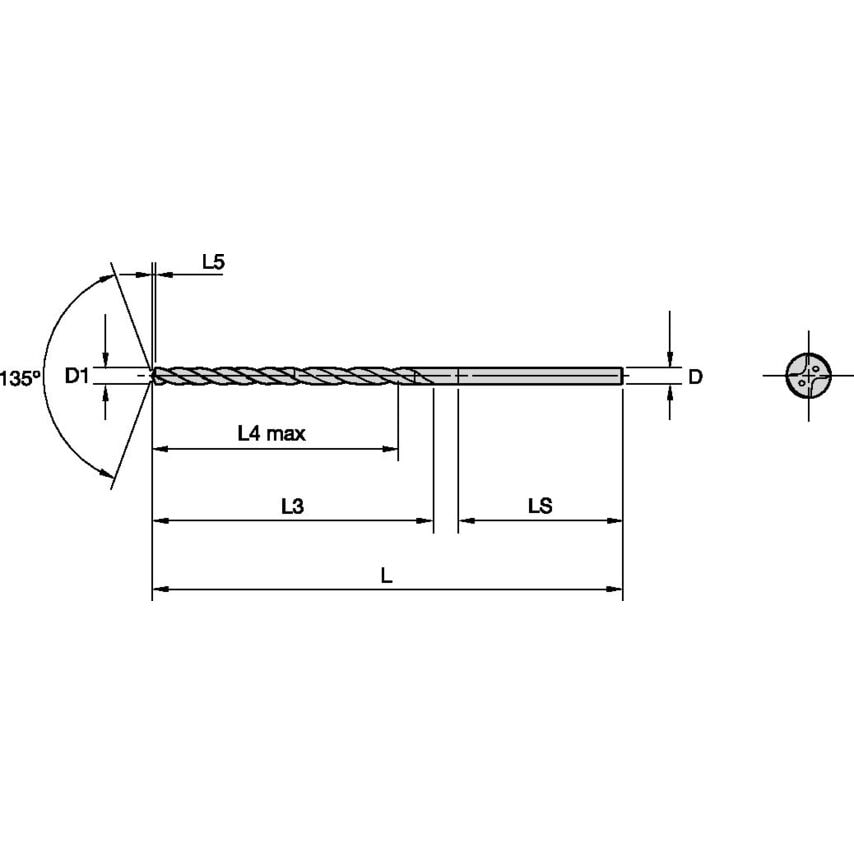

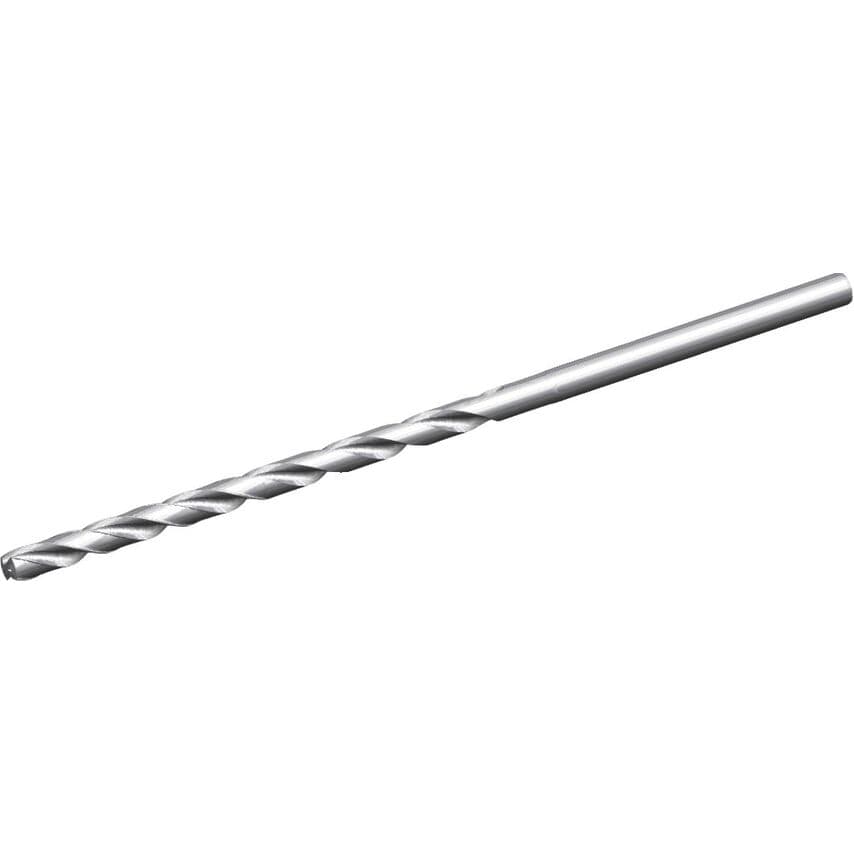

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Helix Angle | 24.797 |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Drill Depth | 44mm | 44.0000mm |
| Overall Length | 86mm | 86.0000mm |
| Drill Point | 0.48mm |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Finish/Coating | Uncoated |
| Drill Diameter Tolerance | -0.010000 to 0.000000mm |
| Primary Material | Non-Ferrous Materials |
| Adapter / Shank / Bore Diameter | 3.0000mm |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Material | Carbide |
| Adapter Type | Cylindrical |
| Drill Diameter | 2.4000mm |
| Shank Length | 30.0000mm |
| Assembly Length | 72.02mm |
| Coolant Delivery | Off-center Axial Coolant |
| Functional Length | 85.5200mm |
| Coolant Diameter | 0.3500mm (0.0335in) |
| Flute Length | 51mm | 51.0000mm |
| MFR Part No. | 4028862 |
| Clamping Length | 13.5mm |
| Number of Flutes | 2 |
